Philippines Acoustic Partition Walls Room Dividers Partitions Mdf High Partition
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Wall | Material: | Aluminium And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Function: | Sliding Room Divider |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Warranty: | Sliding Partition Walls Warranty 3-5 Years |
| High Light: | 500mm Acoustic Partition Walls,Melamine Sliding Acoustic Partition Walls |
||
Product Description

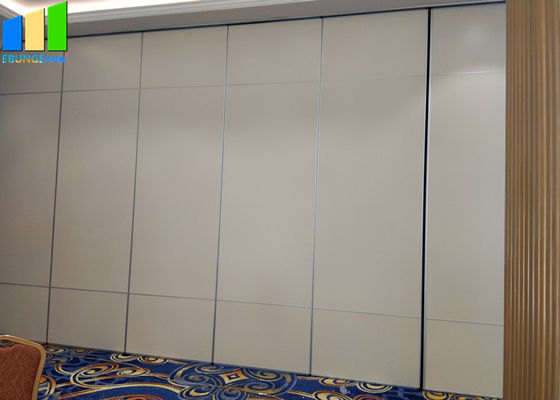

Philippines acoustic partition walls room dividers partitions mdf high partition
Description:
Acoustic partition walls divide a room in minutes with a single thickness of 65 mm sliding panels. No heavy beams or bracing in the ceiling is required. The lightweight top guide track can even mount directly to a suspended ceiling. The floor track is easily removable so the floor is clear when the room divider is not in use.
Movable Wall has excellent acoustical properties. When it comes to sound insulation this Movable Acoustic Wall is the obvious choice, its sound insulation ranges from 37-53 decibels.
Movable Wall Panels runs smoothly along its tracks on ball-bearing trolleys and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
1.Folding glass partition walls can separate the space speedily and conveniently.
2.Top hung system without the need for a floor track.
3.Office partition wall is made from high-density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
4.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5.The aluminum partition wall finished panel is hanging on the aluminum track, assembled with muti direction wheels.
6.Interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.
Pass door operation:
Active screen partition If there is a door in the middle of the door, first turn the square hole on both sides of the door to rotate 180 degrees, loosen the upper and lower seals through the drive wheel, and then close the door in the door; open the last stretch of the movable screen partition of the aluminum plate and Upper and lower seals; retract the last screen of the retractable aluminum plate, so that the distance generated by the screen can at least turn the distance of the screen; the active screen partition cut along the direction of the rails to the position of the closing screen; after each group of screens are collected in the same way Press each two screens tightly to minimize the distance between the screen and the screen. If necessary, you can open the up and down motion seals that are separated by the last active screen that is housed in the Tibetan plate so that it presses against the rails and the ground. This will prevent other people from simply pulling the screen out.
Feature:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
6. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect;
