MDF Board Movable Wooden Partition Wall for Conference Room Aluminium Frame

MDF Board Movable Wooden Partition Wall for Conference Room Aluminium Frame

Product Details:

Place of Origin: Guangdong,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 65 mm wooden partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 108 / 135 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 65 Mm Material: MDF Board+Aluminium
Height: 8 M Service: OEM Service
Color: Multi Color Width: 500-1200 Mm
Panel Style: Melamine Open Style: Sliding
Application: Hotel,banquet Hall Surface: Melamine
Position: Commercial
High Light:

acoustic operable partitions


movable acoustic partition walls

Product Description

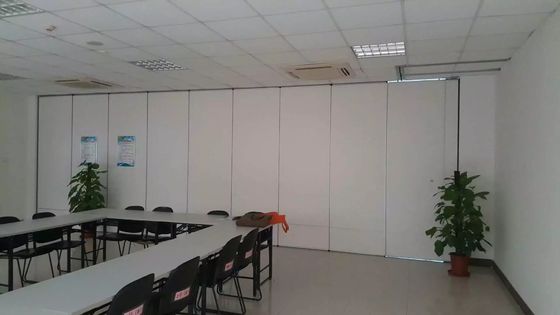

Conference Room Aluminium MDF Movable Wooden Partition Wall


Our operable or movable walls are the quality option for Maximilian the use of space within offices, educational establishments and hotels.


Friends who have used the partition decoration know that the high partition of the activity is flexible and can meet the requirements of limited space, sound insulation, and blocking of sight when it is closed. Some activities block large areas or partially inlaid glass, which has a certain degree of light transmission and its main role is to define space. Soundproofing rather than occluding lines The feature of high partitioning is that it can be closed or opened at will, allowing the adjacent spaces to be independent or combined into a large space.


High-activity partitions can be divided into five categories according to the opening and closing modes: assembled, straight-sliding, folding, roll-up and landing.

Assembled partitions are assembled from a number of independent partitions and, in principle, cannot be moved to the left or right. Therefore, there are no rails and pulleys for the active high partitions, and the partitions should be installed one by one or removed one by one.


The folding event screen can be unfolded and folded like an accordion bellows. According to the different materials used, it is divided into two categories: hard and soft. The former is made up of wooden partitions or metal partitions. The latter is made of cotton, hemp fabrics or vinyl plastic products. The partitions of rigid partitions are connected by hinges, and the angles of the partitions themselves are also changed when the partition is opened and closed. The fan in the closed state is approximately vertical or perpendicular to the track.


MDF Board Movable Wooden Partition Wall for Conference Room Aluminium Frame 0


The straight-sliding partition is composed of a number of partitions. The active-high partitions can be independent or connected by hinges. The individual partitions can slide along a common track or slide along their own track, but they do not change their angle during the slide and open or close along a straight line.


When the straight sliding partition is fully opened, the partitioning fan can be concealed on one side or both sides of the opening. When the opening is large and the partitioning fan is large, a curved track or a track between the other is often overlapped.


The roller shutter partition consists of a large number of vertical strips. The slats are made of wood or metal, and the slats and slats are connected together with a metal ribbon. The opening and closing of the roller shutter partitions can be manually or by means of specialized machinery. When the sashes are closed, the high partitions are rolled up in a square tube or a circle. Inside the barrel. Some rolling curtain partitions can also be rolled, that is, the direction of the slats is horizontal.

Pass door operation:

Active screen partition If there is a door in the middle of the door, first turn the square hole on both sides of the door to rotate 180 degrees, loosen the upper and lower seals through the drive wheel, and then close the door in the door; open the last stretch of the movable screen partition of the aluminum plate and Upper and lower seals; retract the last screen of the retractable aluminum plate, so that the distance generated by the screen can at least turn the distance of the screen; the active screen partition cut along the direction of the rails to the position of the closing screen; after each group of screens are collected in the same way Press each two screens tightly to minimize the distance between the screen and the screen. If necessary, you can open the up and down motion seals that are separated by the last active screen that is housed in the Tibetan plate so that it presses against the rails and the ground. This will prevent other people from simply pulling the screen out.


MDF Board Movable Wooden Partition Wall for Conference Room Aluminium Frame 1




1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;

4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;

5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;

6. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect;

Technical Information:


Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.


The movable partition is removable, removable and configuration, so the partition of the activity has the reputation of removable decoration. Activity partition has high sound insulation, fire prevention, portable, simple operation, etc. Is very suitable for star hotel banquet hall, high-grade restaurant rooms, office meeting room and other places for the use of the space between. According to the survey analysis shows that the active partition products have been widely used in hotels, hotel, banquet hall, multi-function hall, conference room, office buildings, exhibition halls, financial institutions, government offices, hospitals, factories and other occasions.
