Sliding Partition Movable Partition Walls For Bank Meeting Room Reception Hall
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Certification: | SGS,CE etc. |
| Model Number: | BG85 # movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 90 / 120 dollalrs per square meter |
| Packaging Details: | Sliding Partition Movable Partition Wall For Bank Meeting Room Reception Hall : Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | 7 to 20 work days ,it depends on the quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Movable Partition Wall For Bank Meeting Room Reception Hall | Material: | MDF + Aluminum |
|---|---|---|---|
| Color: | Multe Color | Width: | 500 / 1230mm |
| Height: | 2000 / 13000mm | STC Coeffcient: | 32 / 53db |
| Key Words: | Sliding Partition Movable Partition Wall For Bank Meeting Room Reception Hall | ||
| Highlight: | movable partitions systems,acoustic movable walls |
||
Product Description
Sliding Partition Movable Partition Wall For Bank Meeting Room Reception Hall
Description:
Active shutoff system can be divided into one-way and multi-directional partition. One-way partition, suitable for a simpler space design, each single-piece partition by two horizontal double pulley
suspension, can be in the turn, cross and other split mouth movement, each piece can be easily moved to cut off the partition Point, or move to a remote storage room, to play or create a variety of different combinations of space functions.
Multi-directional partition, suitable for more changes in the space design, it can give the maximum flexibility of the facility. When there is no need for the remote between the plate, the hinge hinge will be combined with two pieces of a combination of two-piece, so that the partition quickly and silently in the linear range of movement, can also be double-cut partition in the track Any one end.
When the partition system is activated, its first piece is cut off and connected to the wall wall door, or the first piece of the partition is equipped with a soundproof seal. The end piece with the telescopic engagement section provides a posture of not less than 110 kg when engaged with the end wall to ensure the best sound insulation between the partition and the wall.
|
BUNGE BG-65# Series
|
||||||||
|
Base board
|
Hoisting weight (kgs/㎡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
22-35kgs/㎡
|
32db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 4000mm
|
65mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
32db / 35db
|
|||||||
|
BUNGE BG-85# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/㎡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
28-40kgs/㎡
|
38db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 6000mm
|
85mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
38db / 42db
|
|||||||
|
BUNGE BG-100# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/㎡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
35-45kgs/㎡
|
45db
|
Aluminum
|
30mm
|
500 / 1230mm
|
6000 / 15000mm
|
100mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
45db / 52db
|
|||||||

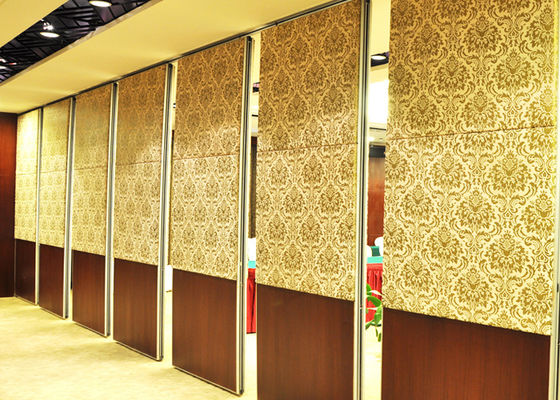

Panel Stacking of Sliding Partition Movable Partition Wall For Bank Meeting Room Reception Hall
Specification :
1) Intelligent and Flexible space utility.
2) Effective and more usage per floor area
3) Creating extra revenue in Hotels, Conference Halls, Convention Centers by holding several smaller functions as well as large ones.
4) Creating Multiple Classrooms, Meeting rooms, office areas instead of one bigroom.
5) The most favouring advantage is it provides excellent high privacy, energy savings and at the same time aesthetically appealing flexibility (Layouts of the room can be changed as per the venue requirements) in the form of sound proffing.
