Super High Sliding Folding Partition Operable Sliding Door For Restaurant
|Place of Origin:||China|
|Model Number:||2.56inch ( 65mm )|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 Square Meters|
|Price:||US $ 100 - 300 / Square Meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face|
|Delivery Time:||10 working days after received your payment|
|Supply Ability:||5,000 Square Meters per Month|
|Material:||Aluminum Frame||Thickness:||2.56inch ( 65mm )|
|Surface:||Fabric , Melamine , Wall Paper, Wooden||Type:||Sliding Doors|
|Application:||Hotel , Hall .meeting Room And So On||Open Style:||Sliding And Folding|
movable partitions systems,
acoustic movable walls

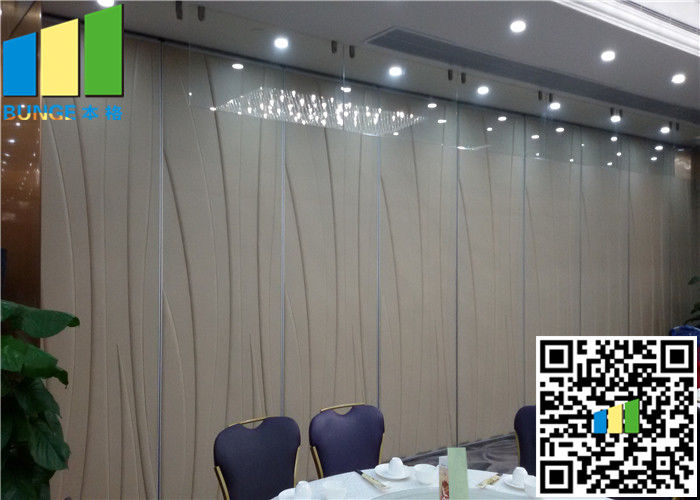

Super High Movable Partition Walls , Operable Sliding Door For Restruant
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
500 - 1230mm
2000 - 6000mm
36 - 42db
Anodised aluminum profiles with integrated magnetic
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material,
Plywood, Gypsum, steel, MDF
25 - 40 kg / sq
Pass door selection
Single or double door
Luxury large restaurant functional operable partition wall
1) Thickness panel: 65mm ,85mm ,100mm , height from 2meter to 17meter
2) Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) Available in wide range of finishes.
6) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
