Acoustic Aluminum Sliding Glass Doors For Meeting Room / Banquet Hall
|Place of Origin:||China|
|Model Number:||sliding door series100|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 Square Meters|
|Price:||US $ 100 - 300 / Square Meter|
|Packaging Details:||Carton package , MDF batten on four section sides , foam board on both front face|
|Delivery Time:||10 working days after received your payment|
|Supply Ability:||5,000 Square Meters per Month|
|Material:||Fabric, Melamine, Wall Paper, Leather||Open Style:||Movable And Operable Partition System|
|Thickness:||3.94 Inches||Height:||79 - 512 Inches|
|Acoustic Rating DB STC:||45 / 55 Db||Application:||Hotel , Banquet Hall .meeting Room And So On|
conference room dividers,
banquet hall room dividers
55 dB Acoustic Rate Operable Walls , Hotel Aluminum Paired Sliding Doors for Banquet Hall
As Operable walls are always custom manufactured to fit your opening dimensions and engineered to meet your aesthetic and acoustic requirements it is urgent that you discuss your priorities with an experienced design professional & manufacturer with a proven record of success. Moderco is at your disposal in this regard.
Technical Parameter for Partition Panel
24 - 48 inches
79 - 512 inches
42 -55 db
Anodised aluminium profiles with integrated magnetic strip and sealing edges on the inside
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
Plywood, Gypsum, steel, MDF
30 – 48 kg / sq
Pass door selection
Single or double door
Panel Surface Finish :
The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others . The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc .)

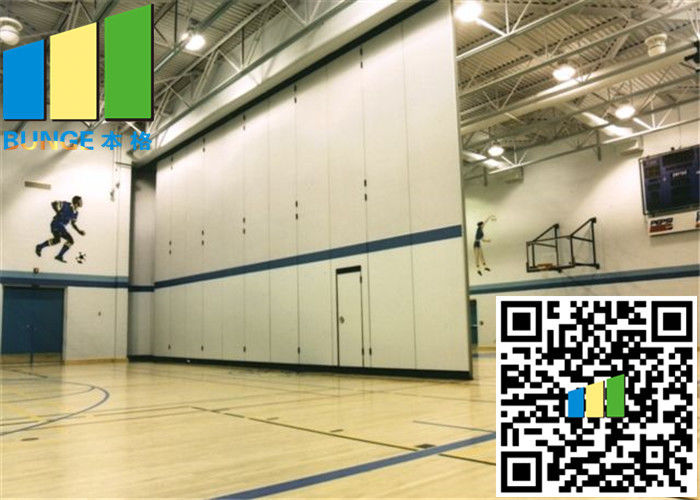

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Retractable mechanism :
The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode . Single crank type mechanisms shall activate floor and head seals.
Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
