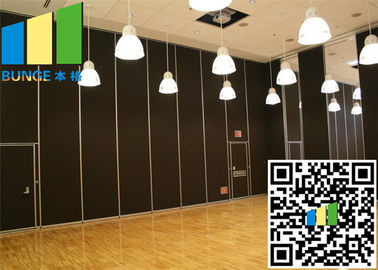

• Aluminium Acoustic Foldable Partition Wall 85mm Thickness For Hotel
Aluminium Acoustic Foldable Partition Wall 85mm Thickness For Hotel

Aluminium Acoustic Foldable Partition Wall 85mm Thickness For Hotel

Product Details:

Place of Origin: China
Brand Name: BUNGE
Model Number: 3.35inch

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square Meters
Price: US $ 100 - 300 / Square Meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Material: Aluminium Thickness: 3.35inch ( 85mm )
Surface: Leather, Fabric , Melamine Type: Sliding Doors And Operable
Application: Hotel , Banquet Hall .meeting Room And So On Collect: Folding And Sliding
High Light:

conference room dividers

,

sound proof room divider

Product Description



Aluminium Acoustic Foldable Wall , Acoustic Room Dividers Partition Wall For Hotel



Description :


The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.





Product Information

  • Panel Suspension:         Top hunge system without the need for a floor track.
  • Panel Width:                   Each panel 600mm-1200mm.
  • Track:                                Aluminum Track, anodized
  • Roller on panel:             Single or double roller.
  • Panel Frames:                Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
  • Top&bottm seals:        Top and bottom pressure retractable seals ensure effortless moved and locked.
  • Panel stacking:              Numerous panel stacking options for complete flexibility.
  • Panel face:                      MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.



Operation :


Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.



Specifications:



Technical Parameter
 for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 6000mm

Sound proof

36 - 42db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic
 strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material,
Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25 - 40 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual





Panels :

The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter        :  25 kg
Maximum height                                 :  4000mm.

Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)

Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode.  Single crank type mechanisms shall activate floor and head seals.



Seals:

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
