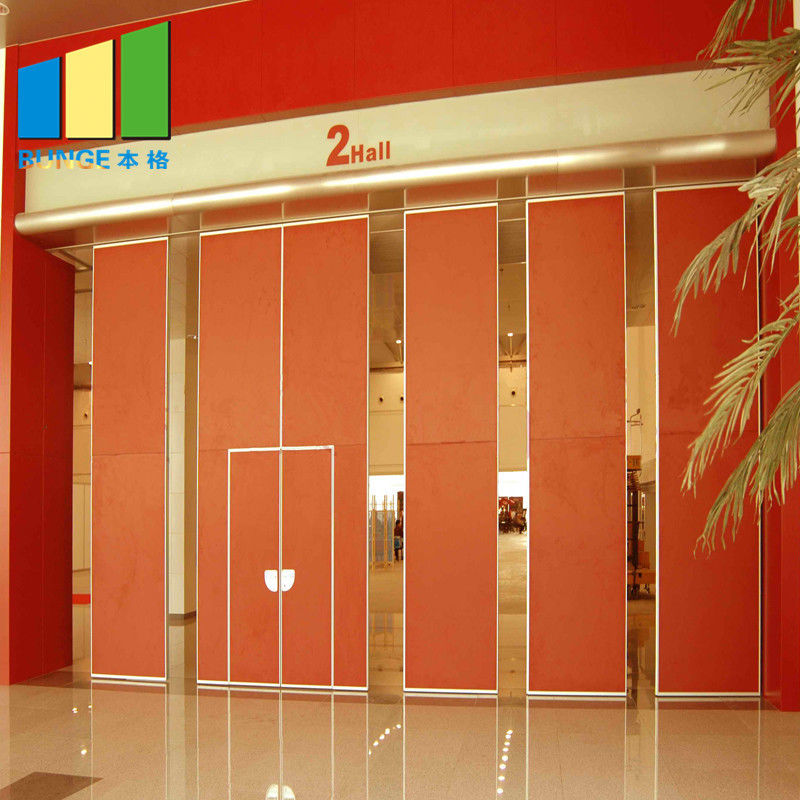

Office Movable Foldable Partition Wall System Soundproof Acoustic Room Dividers Toronto
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic room divider |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-98 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Finish: | Melamine |
|---|---|---|---|
| Application: | Office Partition | Tracks: | Aluminum Alloy |
| Style: | Foldable Partition | Size: | Accept Customized |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description
Office Movable Foldable Partition Wall System Soundproof Acoustic Room Dividers Toronto
Congratulation for the finished project in Uganda
In September 2018, we finished a classroom acoustic room dividers project. Totally 7 sets of wall, around 238 square meters.
This project is a little different, the client chose 5 different colors as it is for a school classroom. They wanted the environment more colorful. The surface is also melamine, the biggest features is that there are more than 60 colors to choose and very easy to maintain. We also sent our engineer Mr.Zeng to supervise the installation.
Thanks for the trust from the client. In May,2019, the client also contacted us for the classroom acoustic room dividers orders. The different size, but same surface and same colors, because they will use them in the same school, just the different floor. And we also sent the engineer to supervise the installation and finished in October,2019.
Everything goes well and the client felt satisfied with our acoustic room dividers system and happy to cooperate with BUNGE Company.
The secret of getting a satisfactory product is not spending more money, It's about choosing the right manufacturer.
Would you like some other videos and pictures about this project? Would you like to know the price for the acoustic room dividers system?
Technical Information
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Acoustic room dividers advantages
Sound insulation: up to 54dB as standard.
Fire Rating: EI2.30 (laboratory certified).
Fire classification: EN13501-1 B-s2, d0 (laboratory certified).
Unlimited metal coatings: including in tumescent ink, galvanizing, anodizing, powder coating.
Double-glazed units use 6mm toughened / tempered safety glass.
No floor track – panels are hung by use of single or twin-point suspension system.
Two, three or four way modules to enable multiple track configurations & stacking systems.
Electronic seal by key-switch or quick-set half-turn manual mechanism.
Unlimited finishes such as Veneers, HPL, MFC, Vinyl, Fabric, Paint, Glass
