Aluminum Frame Dubai Fire Proof DIY Movable Acoustic Wall Partition For Auditorium
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm aluminum movable wall partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-98 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 square meters per month |
|
Detail Information |
|||
| Product Name: | Aluminum Dubai Movable Wall Partition | Frame Material: | Anodized Aluminum 6063-T5 |
|---|---|---|---|
| Track Material: | Anodized Aluminum 6063-T5 | Surface: | Melamine |
| Partition Weight: | 25 Kg/m2 | Style: | Folding And Sliding |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

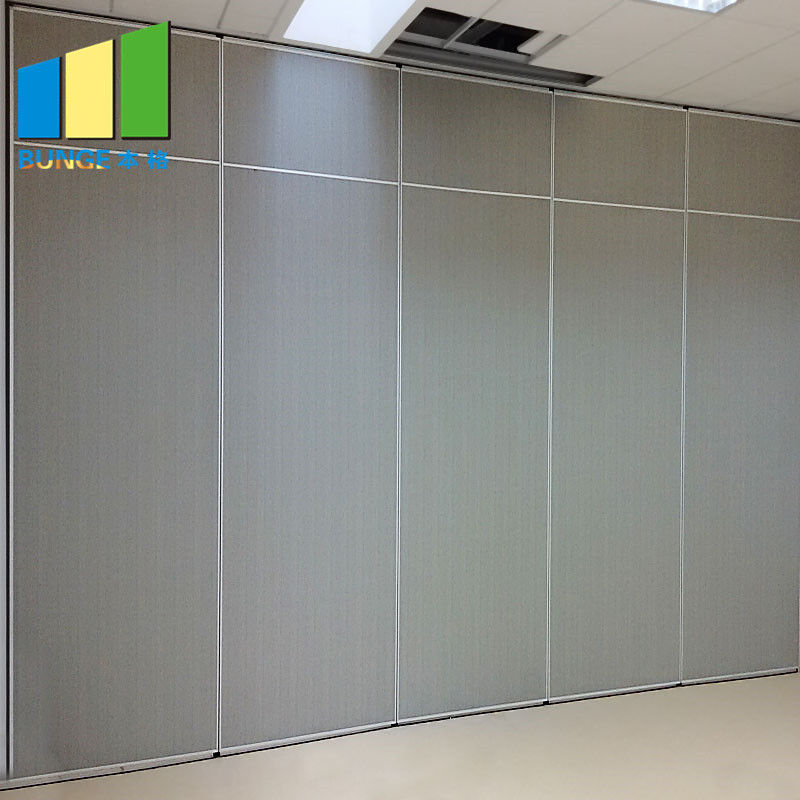

Aluminum Frame Dubai Fire Proof DIY Movable Acoustic Wall Partition for Auditorium
Aluminum dubai movable wall partition details
BUNGE aluminum dubai movable wall partition are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the aluminum dubai movable wall partition panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.
BUNGE offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.
The aluminum dubai movable wall partition consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down
Time means money, especially for clients that rent their facilities for meetings and other functions.
BUNGE provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, foldable partition walls panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
Technical data of aluminum dubai movable wall partition:
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 85 foldable partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 100 fodlable partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60# 80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
Aluminum dubai movable wall partition features:
Maximize your space and versatility your workplace.
Supply high quality soundproof and fire performance.
Sliding aluminium track can be easy to move and park panel.
Top hanging system without floor track. (No need floor guide).
Manual system easy to operate.
Environmental protection material MDF board.
Application to office,banquet hall,classroom,gallery and etc.
Passing door easy to be in or out of workplace.
