Philippines Operable Wall System Wood Sliding Folding Acoustic Partitions For Conference Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Application: | Conference Hall Partitions |
|---|---|---|---|
| System: | Hanging System | Height: | Max 6 Meters |
| Package: | Wooden Boxes | Position: | Interior |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

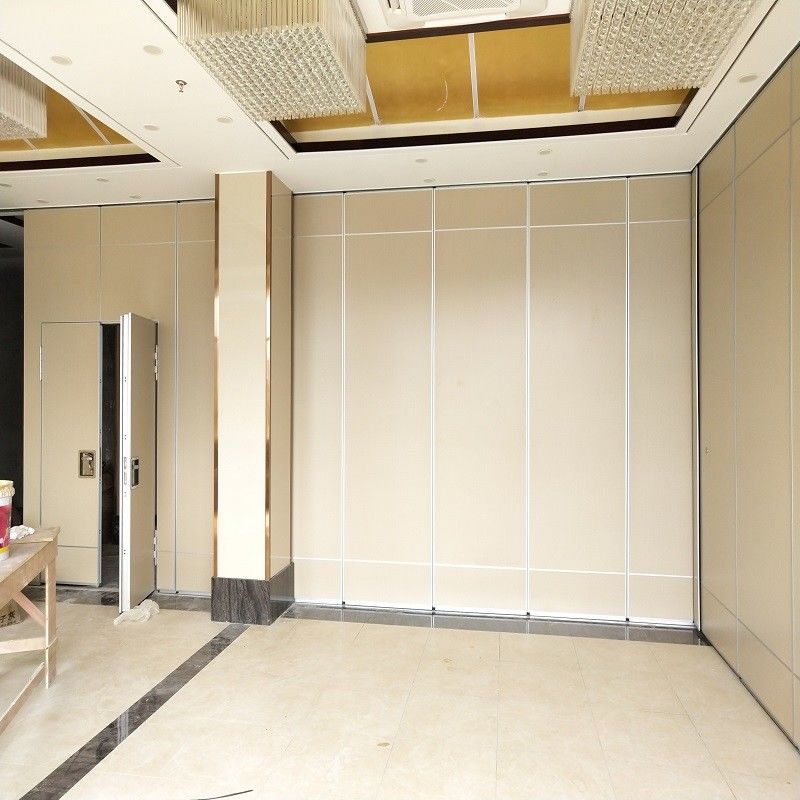

Philippines Operable Wall System Wood Sliding Folding Acoustic Partitions for Conference Hall
Acoustic partition walls details
The folding acoustic partitions for conference hall is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The folding acoustic partitions for conference hall has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Folding acoustic partition is a kind of sliding wall that can divide a large space into a small space. It can serve as a multi-purpose room with multiple functions.Top hanging system without floor track. Also is seal and has good sound insulation.
Our factory can provide four series product let you have a choosing. Panel height is from finished floor to ceiling or beam. Panel width is from wall to wall.
Series 85
It is thickness 85 mm (3 1/4 inch) per panel. Maximize height is about 6 meters.
Soundproof feature is about 38 dB to 43 dB.
Acoustic partition walls features
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
The folding acoustic partitions for conference hall system offers various levels of sound reduction.
Combines elegance with robust construction.
Folding acoustic partitions for conference hall can allow customization.
Space savings in the parking area.
Low specific weights with obvious structural advantages.
Technical information
| Model | BG65 Series | BG85 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 85 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape. | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Aluminium accessoreis system:
Track: The folding acoustic partitions tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The folding acoustic partitions panels for conference hall will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
