Colombia Materials Building Movable Partition Walls Soundproof Door
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65mm movable wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Serivice: | OEM ODM |
|---|---|---|---|
| Usage: | Banquet Hall ,office | Material: | Wooden |
| Soundproof: | 25-55 Db | Color: | Customized |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

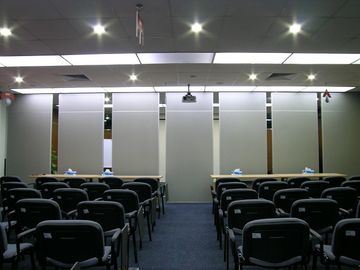

Operable Sound Insulation Collapsible Folding Partition Walls For Training Meeting Room
Creative flexibility
BUNGE wall systems are modular systems and are available in solid wall, balustrade wall, clerestory wall or glass wall versions. Many different design possibilities for the system are possible due to the diversity of materials (glass, wood, aluminium, textile) and the large range of colours available. The solid elements and glazed elements are simply inserted into the mullion and can be easily exchanged.
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Operation:
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track: The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Trolley: BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.
Panels:
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
- Basic Panels shall be equal in module.
- Approx. Weight kg/ square meter : 25 kg
- Maximum height : 4000mm.
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.
