65 mm Aluminum Wooden Movable Partition Walls For Banquet Hall Office Room
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition Walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | MOQ: | NO MOQ |
|---|---|---|---|
| Sample: | Free | Drawing: | Free |
| Color: | Customized | Style: | Customized |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

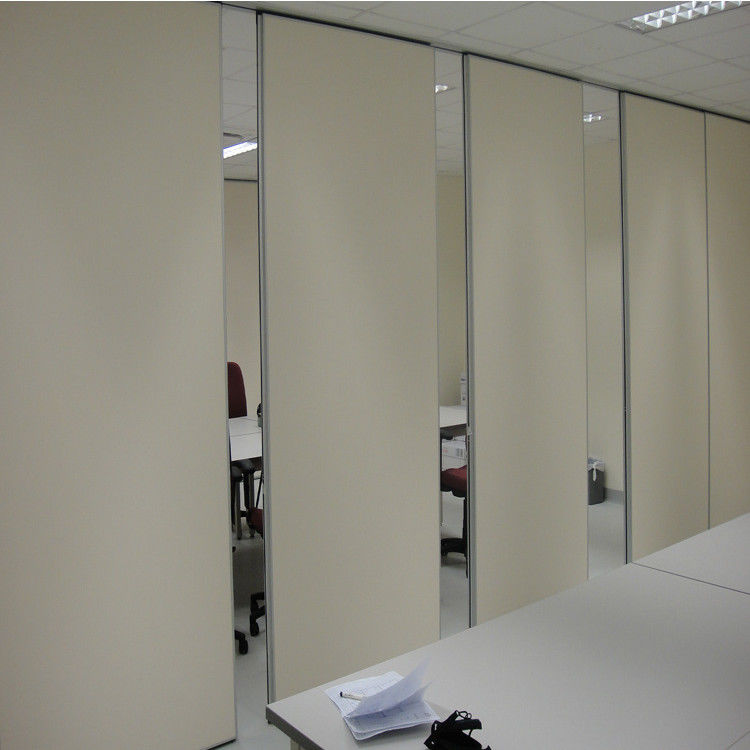

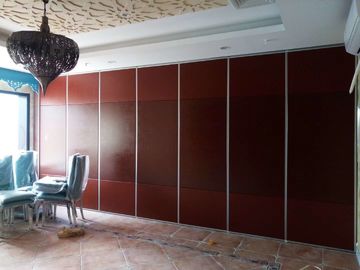

65 mm Aluminum Wooden Movable Partition Walls For Banquet Hall Office Room
BUNGE movable wall description:
The BUNGE Operable Aluminum partition walls is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
These sophisticated acoustic folding partition wall systems do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
The BUNGE operable wall partition wall dividers system comprises panels up to 1200mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panels
| No | Description | Weight KG/M2 |
Material |
| 65Type | 65(T)X680-1210(W)X2000-4500(H) Acoustic alredution coefficient(db):32 Hermetic dar flex distance(mm):45 |
17 | Class-fiber board Gypsum board Firber board |
| 19 | |||
| 20 | Meimine decorative Color steel plate Ctype partiuon |
||
| 24 | |||
| 85Type | 85(T)X680-1230(W)X3000-6500(H) Acoustic alredution coefficient(db):45 Hermetic dar flex distance(mm):45 |
24 | Class-fiber board Gypsum board Firber board |
| 25 | |||
| 28 | Meimine decorative Color steel plate Ctype partiuon |
||
| 38 | |||
| 100Type | 100(T)X680-1230(W)X5000-8500(H) Acoustic alredution coefficient(db):53 Hermetic dar flex distance(mm):60 |
40 | Class-fiber board Gypsum board Firber board |
| 45 | |||
| 48 | Meimine decorative Color steel plate Ctype partiuon |
||
| 55 | |||
| Super High Type | 120(T)X680-1230(W)X8000-17000(H) Acoustic alredution coefficient(db):60 Hermetic dar flex distance(mm):60 |
60 | Class-fiber board Gypsum board Firber board |
| 60 | |||
| 60 | Meimine decorative Color steel plate Ctype partiuon |
||
| 60 |
Bunge Movable Partition Board Advantage
1.Movable partition wall foldable board is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2.The Partition Board is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3. The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in many different ways.
4. It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5. Around the board, there is sound insulation rubber; it can help to insulate the sound entering.
6. The operation ways is much easier, it’s better than the old ways which used spring before.
7. We can add single or double doors on the board for convenience.
8. We have much different finish to meet different requirements from customers and get different decoration effects.
Product details:
(1)Size of wall: all the folding partition wall panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.
