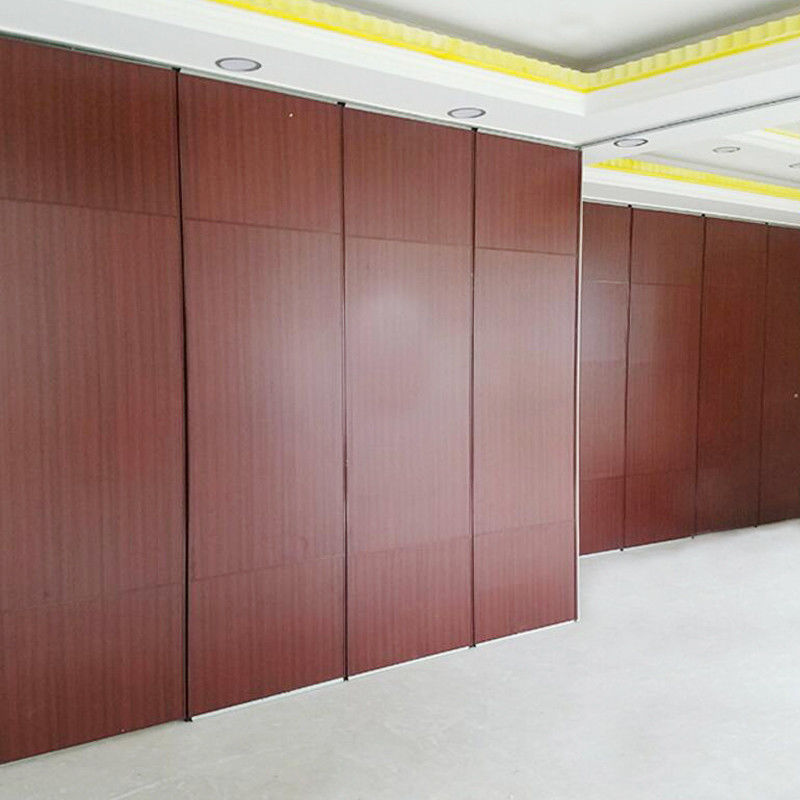

Fabric Soundproof Aluminum Track Channel Folding Movable Operable Partition Walls
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Drawing: | Free |
|---|---|---|---|
| Size: | Customized | Style: | Customized |
| Advantage: | Movable And Sliding | Usage: | Office ,banquet Hall |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Fabric Soundproof Aluminum Track Channel Folding Movable Operable Partition Walls
The BUNGE partition Wall is a rapid action top hung acoustic movable wall system designed for ease, efficiency and reliable daily use. Comprising of interlocking individual panels which, connected together, form a complete secure partition wall. Retractable top and bottom seals are utilised to lock each panel into place to ensure optimum acoustic performance.
Main features:
Ease of Operation
Durability
High acoustic performance up to 50db Rw
Acoustically tested pass doors
Nominally 65,85,100mm thick.
Comprehensive selection of finishes – inc veneer, laminate etc
Fully bespoke finishes available on request
Flexible division with various stacking options
Top hung with no floor tracks
Fire rated options available
Panels can be manufactured up to 17000 mm high
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Sliding partition walls details
Sliding partition walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centres,banks and restaurants.
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Sliding partition walls application:
Sliding Partition Wall For Hotel Banquet Hall series had been widely used in hotel,multifunction room,meeting room,banquet hall,office building,show room,financing institution,hospital,factory,etc a variety of occasions.
