Acoustic Classroom Movable Folding Partition Wall Door With Sound proof
Product Details:
Place of Origin: | China |
Brand Name: | Bunge |
Model Number: | 65mm Movable Partition |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meters |
---|---|
Price: | USD 75-95/ Square Meter |
Packaging Details: | Carton package , Paper package |
Delivery Time: | 10 working days after received your down payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 5,000 Square Meters per Month |
Detail Information |
|||
Product Name: | Movable Partition Wall | Surface: | MDF,Melamine |
---|---|---|---|
Application: | Banquet Hall,hotel,class Room | Sample: | Free |
Material: | Wooden | Color: | Customized |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

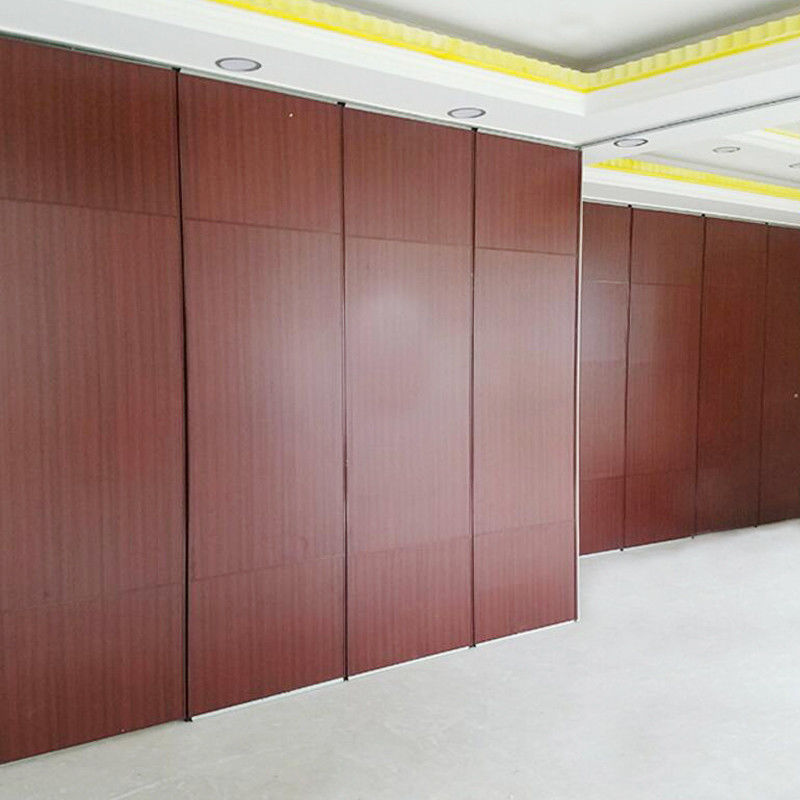

Acoustic Classroom Movable Folding Partition Wall Door With Sound proof
Bunge Movable Wall Description
1)thickness panel:65mm,85mm,100mm, height from 2meter to 17meter
2)top supported without floor track or guide
3) clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) sound insulation coefficien :stc 32db to 53 db, astm standard of acoustic tested in hongkong.
6) available in wide range of finishes.
7) fast delivery and rich experiences in oversea project installation guide & supervision.
Technical Details
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65mm | 85mm | 100mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
Face material | 9mm | 9mm | 12 mm |
Passdoors | Single door or Double door | ||
Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) |
Features:
1.sound proof movable partition wall can separate the space speedy and conveniently.
2.muti-function: sound insulation,heat insulation,fireproof function.
3.top hung system without the need for a floor track.
4.the sound proof movable partition wall panel is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
5.around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
Finishes:
there are wide of range face finishes are available :melamine faced mdf or
plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,formica ,acoustic panel,white boad ect., panels can also be supplied unfinished for field decoration,standard frame color is clear anodized aluminum,custom powder coating colors are available.
Bunge movable partition wall is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65mm ,85mm and 100mm,and a width up to 1230mm.maximum height can reach 17meter tall.
Common applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, ktv rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, workshops and more noise reduction projects.
