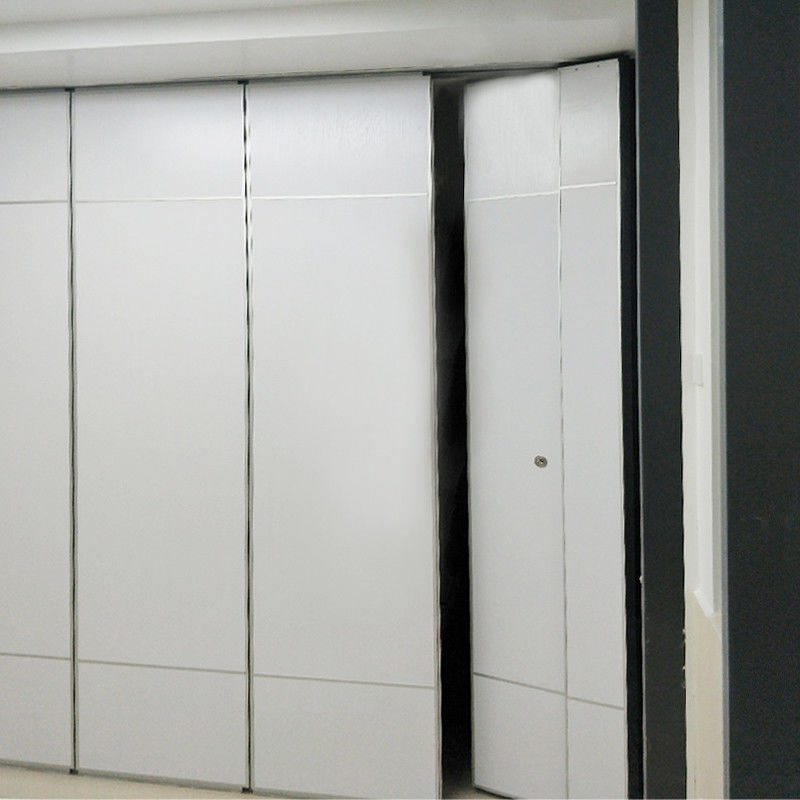

Frameless Folding Easy Install Sliding Movable Partition Wall For Balcony Hotel
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 85 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Surface: | MDF,Melamine ,Fabric ,Leather |
|---|---|---|---|
| Color: | Option | Drawing: | Free |
| Advantage: | Hanging System,no Floor Track | Pass Door: | Can Make |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Frameless Folding Easy Install Sliding Movable Partition Wall For Balcony Hotel
Description:
The acoustic room divider is the highest specification range of fully operable, individual-panel movable partitions system. Acoustic insulation of up to 56 dB noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple in fill's and a panel assembly design that allows an acoustic break between the frame and outer layer.
The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in three thickness, 65 mm, 85 mm and 100 mm, depending on acoustic rating (from 37dB–56dB).
Soundproof feature:
Sound proof partition wall thickness: 65mm~2.56inch, 85mm~3.35inch, 100mm~3.9inch
Board thickness: 9mm or 12mm
Blinds thickness: 16mm,25mm
Sound proof partitions standard length: ANY
Sound proof partitions standard height: 2000—13000mm, 78.7inch ~ 512inch
Optional material: Fabric/Melamine board/Glass/metal board/Aluminum Composite Panel/Soft panel/Blinds/Wooden board
Description partition wall / folding door / movable wall /
Characteristic: Movable / Stable Structure/ Sound insulation / Pro-environment/ fireproofing / Stylish
Product dominant: Design systematization / Industrialization productions / Standardization Installation / Diversification working / Modernization appearance
Service: Supply consulting service, CAD project, office layout design /Work environment consulting /Products instruction
Sales Countries: Made in china. Sales all over the world.
Components of Office Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
