Soundproof Room Partition Commercial Movable Wall Conference Room Folding Wall Partition
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 87 / 136 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Thickness: | 65 Mm | Panel Height: | Less Than 4 M |
|---|---|---|---|
| Color: | Multi Color | Service: | OEM Service |
| Application: | Banquet Hall,hotel,restaurant | Surface: | Leather,fabric,plywood |
| Product Name: | Movable Wall Partition | Function: | Divide Space |
| Warranty: | 5-10 Years | ||
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description

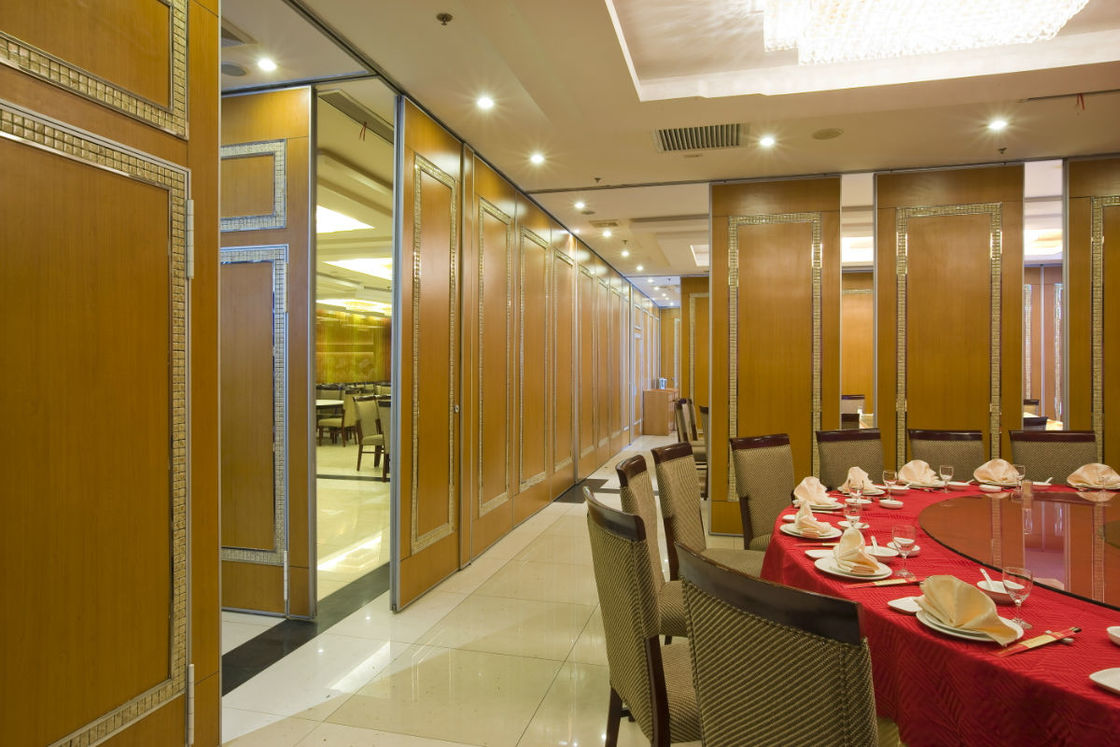

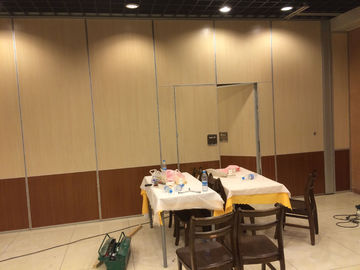

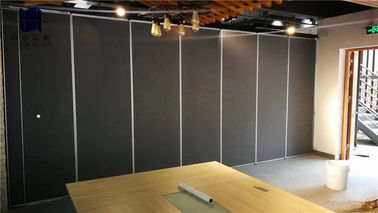

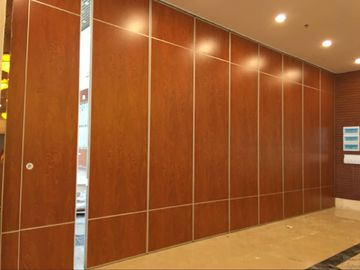

Soundproof Room Partition Commercial Movable Wall Conference Room Folding Wall Partition
Description:
Folding partition walls are made up of sliding panels which interlock to form a partition wall. This enables you to set up large installations with the minimum amount of effort. When in position the panels have the appearance of a permanent partition wall.
We are in the business of movable wall servicing, movable wall maintenance, movable wall repair and suppliers of acoustic movable walls and sliding folding partitions across England and Wales. We have the knowledge and expertise to service and repair any type of movable walls and folding partitions.
Feature:
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.
Technical reliability
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Surface
Melamine,plywood,acoustic fabric and leather
Framework (stylist)
Aluminium profiles that become totally invisible when flat by means of a hollow joint system.
Technical information:
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Movable Partition Wall Accessories:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the retractable partitions panels with wheels.
Wheels/Rollers: It is the carrier for the retractable partitions,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
