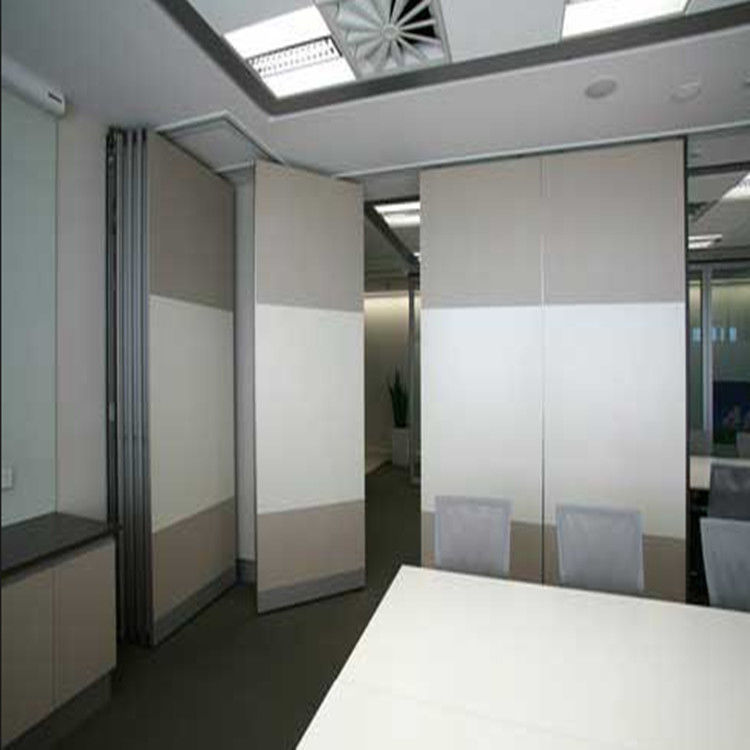

Top Hanging 65mm Melamine Surface Office Partition Wall / Acoustic Movable Walls
|Place of Origin:
|65 mm movable partition wall
Payment & Shipping Terms:
|Minimum Order Quantity:
|US$82-118 per square meter
|Carton package, MDF batten on four section sides, foam board on both front face.
|T/T, L/C, D/A, D/P
|Office,Commercial Building And Residential House
|Max 4 Meter
|Space Saving,Conference Room Divider,soundproof
|Free Of Floor Track
movable walls on wheels,
acoustic movable walls
Top hanging 65mm melamine surface operable soundproof movable office partition wall
Bunge 65mm office movable partition wall divide your space flexibly with high sound insulation performance.no need floor track, top hung sys.The 65 mm office movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.
Features ＆ Benefits
1. Make full use of space and create space
2, easy to install and disassemble
3, good sealing, good soundproofing effect
4, surface material can be clean easily
5, accept OEM and ODM service
6, a variety of specifications, materials, colors for you to choose
7, easy collection and space saving
|Technical Parameter for Partition Panel
|Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
|Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
|Plywood, Gypsum, steel, MDF
|Pass door selection
|Single or double door
Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
Stacking: The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
