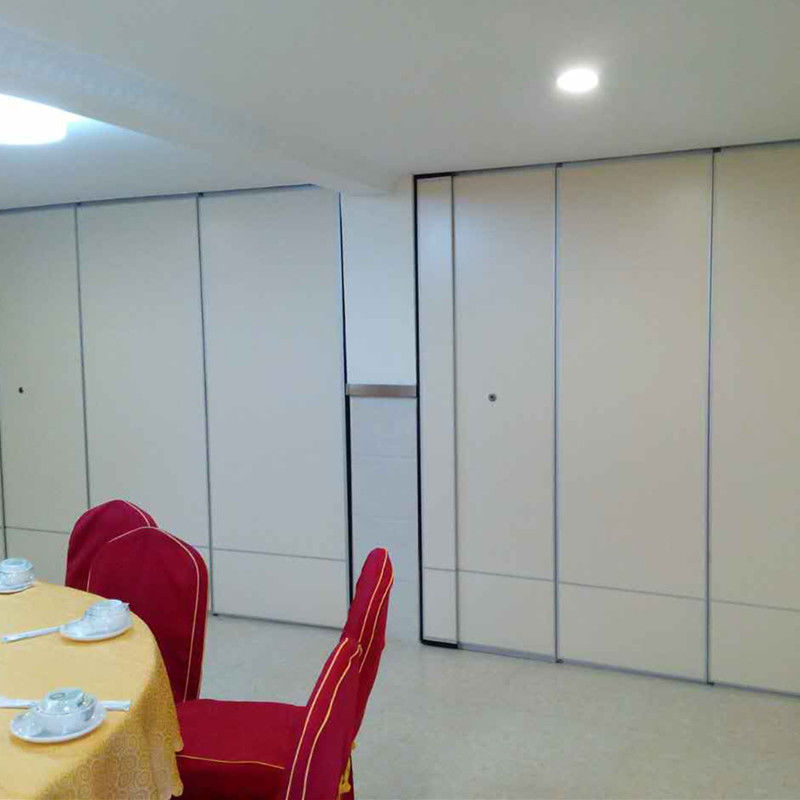

Acoustic Fireproof MDF Movable Partition Walls For Banquet Hall No Floor Track
Product Details:
| Place of Origin: | Guangdong ,China |
| Brand Name: | EBUNGE |
| Model Number: | 100 SERIES Partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden frame |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| General Use: | Soundproof Partition Walls Are Used For Interior Decoration | Type: | Folding Partition |
|---|---|---|---|
| Material: | MDF | Color: | Customized |
| Size: | Customized | Thickness: | 100mm |
| Application: | Banquet Hall | Style: | Modern |
| Product Name: | Folding Partition Wall | Height: | Max 8000mm |
| Width: | 1200mm | Service: | OEM/ODM |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Acoustic Fireproof No Floor Track MDF Sliding Movable Partition Wall For Banquet Hall
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Product description
The track is made of aluminum alloy profiles. The track is installed on the ceiling. The ground does not need the track.The lifting wheel includes the type lifting wheel and the stacked type lifting wheel. The type lifting wheel is used for the single-piece door panel single-wheel single lifting, and the stacked type is used for the single-piece door panel double-wheel double lifting
Type 65
Product information: partition thickness is 65 ㎜, single wheel and single piece of double wheel, can open U and L door in the door, every piece of maximum load of 225 ㎏, screen or 22.5 ㎜ scale range. Product property: magnetic strip is vertically embedded, sealed and soundproof. Among them: the datum is fiber board or plywood, its sound insulation factor RW = 32 db, density of 24 ㎏ / ㎡. Application: the partition height is 2.5m ~ 4m.Between 5 meters.
Type 85
Product information: partition thickness is 85 ㎜, single wheel and single piece of double wheel, can open U and L door in the door, every piece of screen maximum load of 450 kg, bottom top 22.5 ㎜ scale range. Property: magnetic strip is installed at the connection of two screens, which will attract itself when close to each other. It has good sealing and sound insulation performance. Among them: the datum is fiber board or plywood, its sound insulation factor RW = 40 db, density of 28 ㎏ / ㎡, Application: the partition height is between 3 meters and 7.5 meters.
Type 100
Product information: partition thickness is 100 ㎜, monolithic single wheel and single piece of type, can open U and L door in the door, every piece of screen of maximum load of 675 ㎏, or 30 ㎜ scale range. Property: magnetic strip is installed at the connection of two screens, which will attract itself when close to each other. It has good sealing and sound insulation performance. Among them: the datum is fiber board or plywood, its sound insulation factor RW = 50 db, density of 32 ㎏ / ㎡. Application: suitable for partition height between 5 m ~9 m.
Product features
1, Partition products are modern and advanced architectural decoration style, space can be quickly separated, easy to use, and with sound insulation, heat insulation fire function.
2. The wallboard is made of high-strength aluminum alloy framework, special rubber, high-quality sound insulation cotton and decorative panels, with smooth surface and strong collision resistance.
3, Wallboard by embedded in aluminum alloy track in the straight and universal steel wheel lifting, with flexible track, suitable for a variety of different accumulation storage requirements.
4, the ground is not laid track, only the track installation ceiling, and decorative ceiling flat;Does not affect the overall continuity of the space, changes in the invisible.
5, The wall board up and down and horizontal rubber sound insulation seal free stretch to enhance the sound insulation performance of the wall board.
6, Scalability can fully reflect the concept of people-oriented operation, tactile flexible, more safe and durable than the spring operation.
7. According to the needs, single door and double door can be installed on the wall panel to facilitate access.
8, Wallboard surface can cooperate with a variety of finishes to achieve different decorative effects.
Wide application
Partition screen for hotel activities, partition wall for activities, folding partition door for lobby, mobile partition wall, partition screen for hotel activities, multi-functional meeting room, hotel, restaurant, restaurant, exhibition hall, exhibition hall, office building, school and other places.It is to have height agile, firm,
