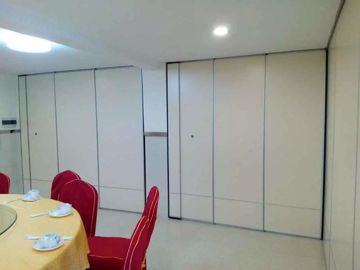

Acoustic Foldable Movable Partition Walls For Conference Room / Star Hotel

Acoustic Foldable Movable Partition Walls For Conference Room / Star Hotel

Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ASTM E90
Model Number: 85 mm movable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity available
Price: US $78-108 per square meter.
Packaging Details: Paper Carton, outside with wooden boxes.
Delivery Time: 15-25 days
Payment Terms: T/T, Western Union
Supply Ability: 8000 square meters per month.
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Walls Sample: Free
Frame Material: Anodized Aluminum 6063-T6 Feature: Sound Proofing And Acoustic
Structure: Hanging System Thickness: 85 Mm(3 1/4 Inch)
High Light:

movable walls on wheels

,

acoustic movable walls

Product Description

Acoustic Folding Sliding Wall Partitions Conference Room Movable Partition Walls



Feedback of movable partition walls accessories



There are more than 60+ kinds of accessories for the partition walls, which can form a whole sealing system. We have more than 10 tons stock of partition walls accessories in our factory now. Normally we can provide the partition walls tracks accessories to our client, such as the aluminum tracks and the trolley bearings. So if our client need to buy the partition walls accessories,we can start package and delivery immediately. We have exported the partition walls accessories to many countries,such as the Colombia, New Zealand, Ireland, America, Sri Lanka, Australia and so on.



The following picture is about the feedback from our client who comes from Califoria, a very nice person and he also produce the partition walls,just importing the movable partition walls accessories. And he gave me return order regularly.

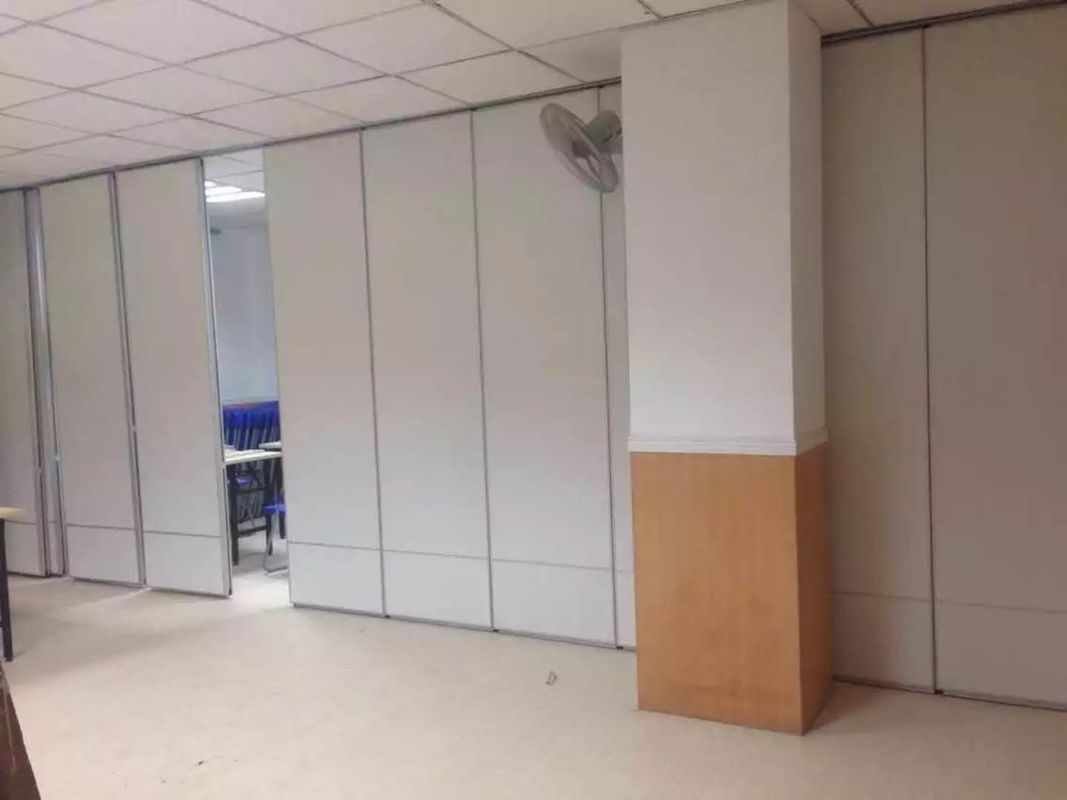

Acoustic Foldable Movable Partition Walls For Conference Room / Star Hotel 0



Movable partition walls details



Medium and high-grade practical movable partition walls.



85 type movable partition walls thickness is 85 mm movable partition. The frame material is made of aluminum alloy material to make practical partition screen products.



Sound insulation coefficient range: 35db-50db



Applicable height range: 2 meters - 5.5 meters



Applicable places: star hotel, function hall, conference room, banquet hall, restaurant, office, etc.



Partition wall material: high hardness aluminum alloy, high quality steel, PAR sound absorbing glass fiber, green wood veneer, etc.

detail intruduction



The distance from the ceiling to the load-bearing structure is 180 mm;

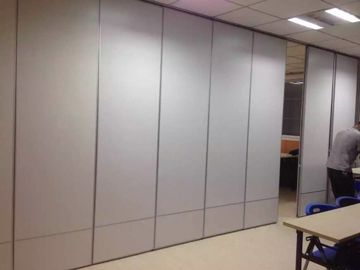

Acoustic Foldable Movable Partition Walls For Conference Room / Star Hotel 1



Movable partition walls technical information



TYPE 65 85 100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
Max height 4000mm with heavy duty track 6000mm with heavy duty track 18000mm with heavy duty track or steel track
Panel width 600-1200mm 600-1200mm 600-1200mm
Frame construction Aluminium/steel Aluminium/steel Aluminium/steel
Face material 12mm 12/15/18mm 12/15/18mm
Fire safety optional Class I or O optional Class I or O optional Class I or O
Vertical profiles Aluminium,anodised with sealing profiles,painted-optional Aluminium,anodised with sealing profiles,painted-optional Aluminium,anodised with sealing profiles,painted-optional
Retractable seals Aluminium,black with double rubber seals Aluminium,black with double rubber seals Aluminium,black with double rubber seals
Operation of seals Manual,with supplied operating handle Manual,with supplied operating handle Manual,with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass Doors Single open in oanel or double open in two panel Single open in oanel or double open in two panel Single open in oanel or double open in two panel
Sound insulation 40,44,47,50dB Rw 40,44,47,50,53dB Rw 40,44,47,50,53,58dB Rw
Weight Approx 33-40kg/sq M Approx 43-50kg/sq M Approx 63-70kg/sq M

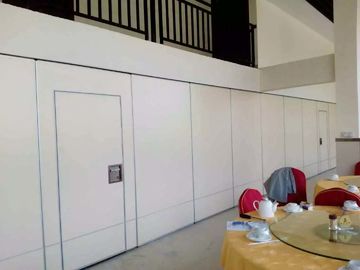

Acoustic Foldable Movable Partition Walls For Conference Room / Star Hotel 2
