Multi Color Sound Insulation Movable Partition Walls For Office No Floor Track
|Place of Origin:
|65 mm movable partition wall
Payment & Shipping Terms:
|Minimum Order Quantity:
|US$82-118 per square meter
|Carton package, MDF batten on four section sides, foam board on both front face.
|T/T, L/C, D/A, D/P
|Office,Commercial Building And Residential House
|Max 4 Meter
|Space Saving,Conference Room Divider,soundproof
|Free Of Floor Track
movable partitions systems,
acoustic movable walls

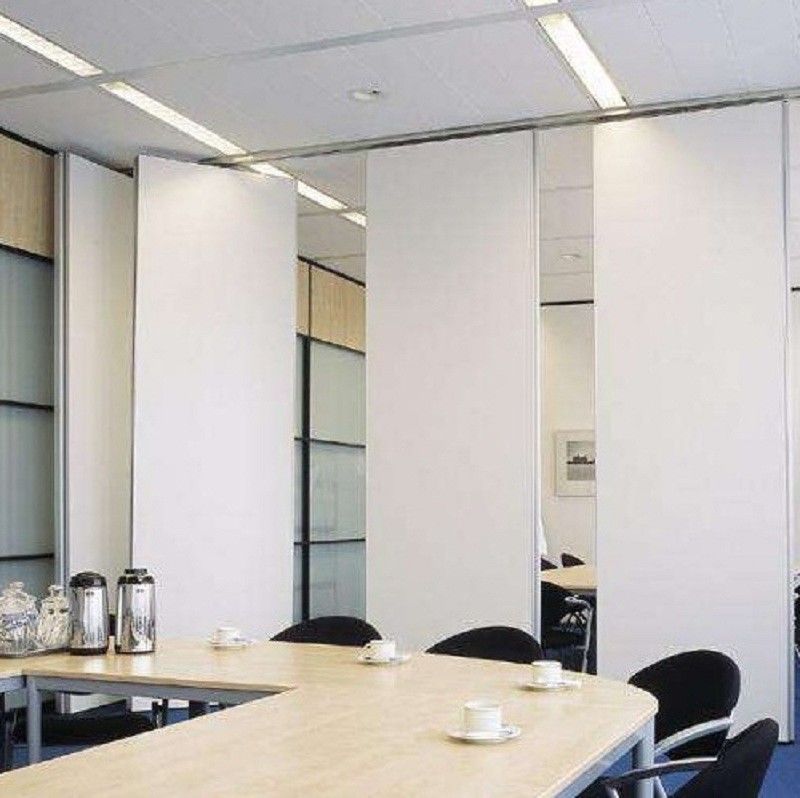

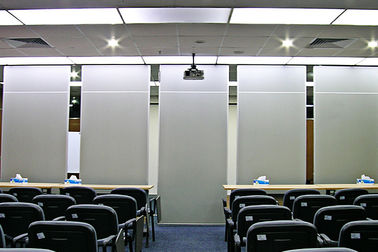

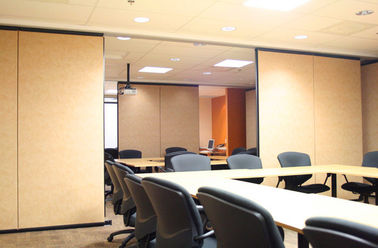

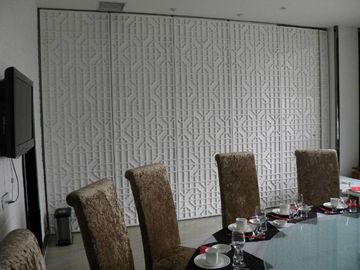

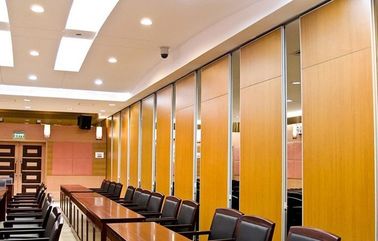

No floor track multi color operable soundproof movable partition wall for office
Bunge movable partition wall divide your space flexibly with high sound insulation performance.no need floor track, top hung sys.
Features ＆ Benefits
Top hung supported
Wide range of surface finishes
Individual panels that can be stored away for maximum space usage
Robust aluminum frame construction for demanding environments
Hinged pair panels for quick operation
Operable top and bottom seals for effortless operation
|Technical Parameter for Partition Panel
|Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
|Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
|Plywood, Gypsum, steel, MDF
|Pass door selection
|Single or double door
Operation:Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track: The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Trolley: BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter : 25 kg
Maximum height : 4000mm.
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.
