Movable Operable Partition Walls For Restaurant / Soundproof Room Dividers
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | BUNGE |
| Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| General Use: | Soundproof Partition Walls Are Used For Interior Decoration | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Thickness: | 65mm |
| Height: | Max 4.5meter | Width: | 500-1228mm |
| Feature: | Space Saving,soundproof | Advantage: | Free Of Floor Track |
| Finishing Option: | Melamine | Service: | OEM/ODM |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

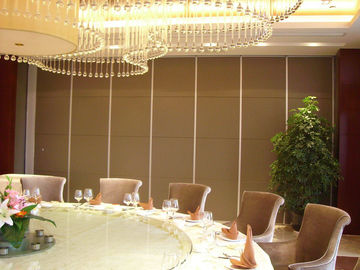

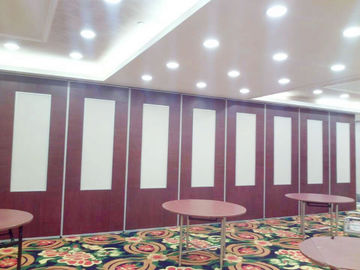

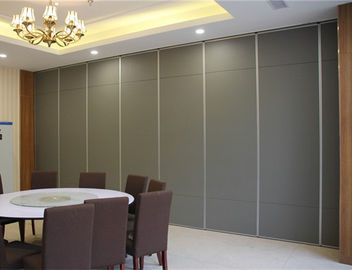

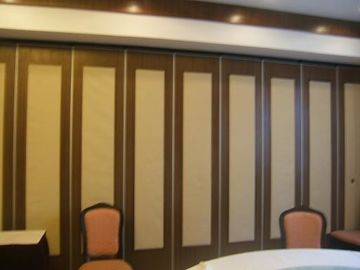

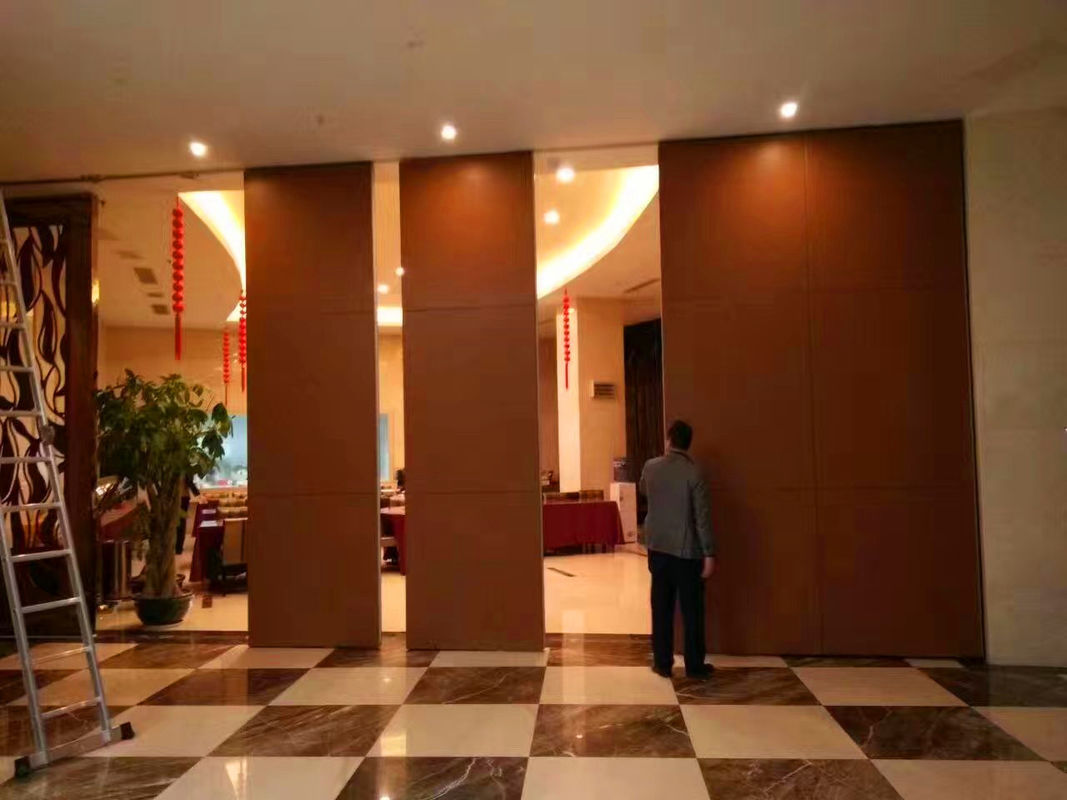

Aluminum frame soundproofing movable operable partition wall for restaurant
Product Description
Bunge folding partition wall divide your space flexibly with high sound insulation performance.no need floor track,top hung system.. Its magnetic strips are set on the adjacent panels edges ,they will attracted by each other automaticly when they are close enough,have good seal and acoustic performance,each panel limit weight is 450KG,top and bottom telescopic range are 22.5MM.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Advantage:
1.To seal the corner, Bunge gets its own design about specially developed conically shaped corner pieces that fit closely together. They ensure excellent soundproofing and stability.
2. Bunge’s sweep seal are less expensive alternative to retract top seals. Sweep seal are multi-fingered vinyl seals that close the gap between the top of the panel and tracks. It really is an effective sound barrier for most applicant.
3. Bunge’s vinyl seals are made of Nitrile Butadiene Rubber(NBR),durable and perfect for sound installation, and long time wearing.
4.Bunge has using the high density 55KG/Km3 rock form instead of lower Density 24KG/m3
5. ASTM international is an organize establish standards for testing and application in many areas including acoustics. Bunge designs and builds their acoustic operable partition systems including tracks, rollers, panels and doors according to the common ASTM standards of acoustic.
We offer:
A professional design service
Survey and installation guide
Using top quality materials and components
A fully experienced work team
Maintenance contracts to ensure your valuable asset remains in full work order.
Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
Stacking: The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
