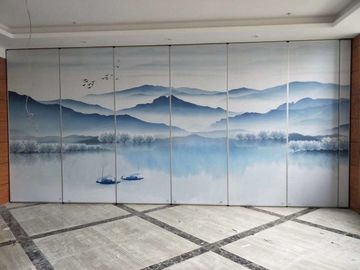

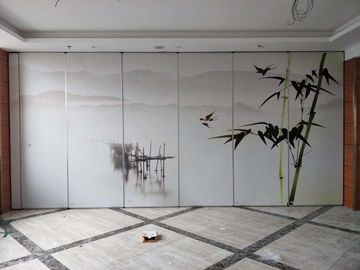

Decorative Soundproof Material Acoustic Partition Wall For Conference Room
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 82 / 126 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Service: | OEM Service | Height: | Less Than 4 M |
|---|---|---|---|
| Width: | 500-1300 Mm | Surface: | Fabric,plywood,mdf Bare Finish |
| Open Style: | Sliding And Folding | Function: | Soundproof |
| Application: | Hotel,restaurant | Product Name: | Acoustic Partition Wall |
| Material: | MDF Board+Aluminium | Thickness: | 65 Mm |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Decorative Soundproof Material Sliding Folding Conference Room Acoustic Partition Wall
Specification:
Acoustics movable wall partition offers unique custom made Acoustic Movable Wall Partitions which facilitates in managing.
Your space to its maximum capacity. Our Acoustic Movable wall partition system constitutes of panels.
Suspended individually from the rail fixed to the top of the roof. The Acoustic Movable wall partition has retractable top and bottom seals which interlocks each panel to its position. If required, hinged pass doors shall be provided through the Acoustic Movable Wall Partition where access is required.
Feature:
Stable and self-supporting frame construction.
Flexibility through wide variety of panel arrangements.
Ease of use & movement due to lightness in construction.
Smooth and silent while in operation.
Good acoustic performance.
Availability of unlimited choice of finishes.
Acoustic partition wall structure:
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Acoustic movable wall partition system is a high quality bespoke movable wall system to suit timber panels up to 150 kilograms in weight, there are multiple options for Door types, parking areas and track layouts. Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Acoustic partition wall operation:
When more flexibility is needed, multidimensional panels make it easy to rearrange the space. The system makes it possible to manually move the individual panels over multiple axes and thus to follow straight, curved or even crossed rails. As long as they remain on the same floor, the panels can be moved as far as a rail can drive them, whether for packing or storage.
We can offer:
1. Profession--We have professional sales staff. Any questions will be replied within 24 hours.
2. Price--Because we are factory , so we can provide higher quality and lower price products.
3 . Service--Easy and convenient to transport,we promise timely delivery date, and good after-sale service.
4. Team--We have our own engineering department, according to your request for your tailor-made for your product.
