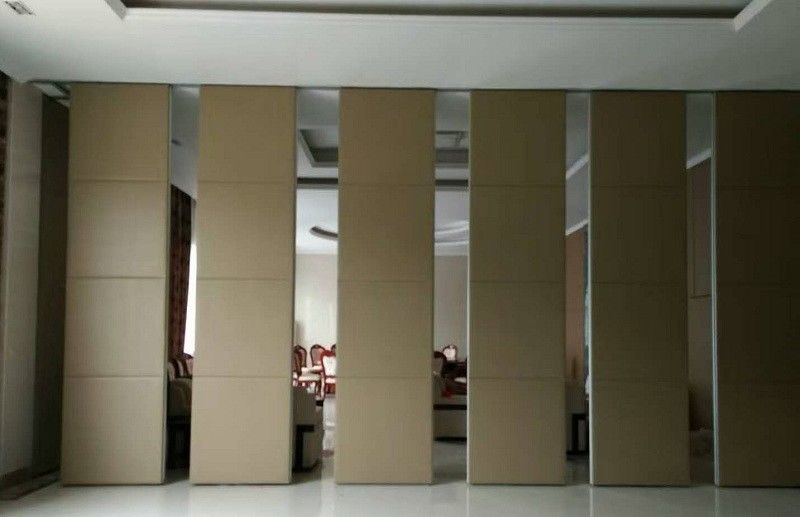

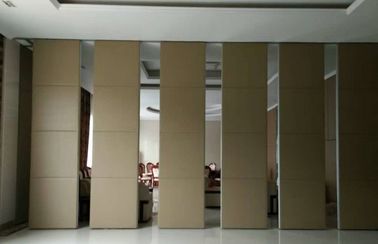

Soundproof Operable Movable Acoustic Partition Wall With Aluminium Tracks Rollers

Soundproof Operable Movable Acoustic Partition Wall With Aluminium Tracks Rollers

Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 85 mm acoustic partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: US $ 78-125 per square meter
Packaging Details: Wooden boxes
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 5000 square meter per month
Get Best Price Contact Now

Detail Information

Feature: Soundproof Material: MDF+Aluminum
Application: Conference Room,offices Type: Office Furniture
Finish: Melamine Product Name: Acoustic Partition Walls
High Light:

acoustic operable wall

,

movable acoustic partition walls

Product Description

Soundproof Operable Walls Movable Acoustic Partition Walls with Aluminium Tracks Rollers



Technical Information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 18000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Pass doors Single door or Double door
Sound insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Acoustic Partition Walls Features



◆Individual panels that can be stored away for maximum space usage.



◆Operable top and bottom seals for effortless operation.



◆Aluminum frame construction for enhanced acoustics.



◆The system offers various levels of sound reduction.



◆Unique track and carrier system ensuring quiet and easy operation.



◆Numerous panel stacking options for complete flexibility.



◆Top hung and no floor track.◆Extensive range of surface finishes can be availabled.



Our Services



· Detailed initial client consultation

· Bespoke design

· Digital CAD drawings

· Highest quality manufacturing and production

· Professional and efficient Installation service

· Two years guarantee

· Guaranteed customer satisfaction

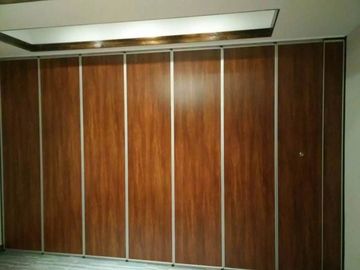

Soundproof Operable Movable Acoustic Partition Wall With Aluminium Tracks Rollers 0



Acoustic Partition Walls Components



Tracks: Made of good quality anodized aluminium 6063-T5 materials, hanging the movable walls panels with wheels.



Wheels/Rollers: It is the carrier for the movable walls, let the panels move more flexibly. Pulley bearing is more than 1600 KGS.



Connectors: Made of anodized aluminium 6063-T5 aluminum tracks, “L”, “T”, “+”types are available.



Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation, wear-resistant.



Rock Wool: Density of 50kg/m3, help us reduce the noise and heat.



Handle: Operate the retractable being up and down.



Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.



Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable walls.



MDF board: 9 mm thickness, density of 760kg/m3, absorbent thickness expansion rate is less than 15%. Formaldehyde emission is 34mg/100g.

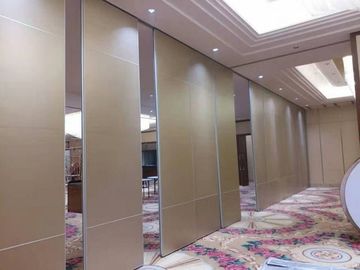

Soundproof Operable Movable Acoustic Partition Wall With Aluminium Tracks Rollers 1

About us



FACTORY TO CUSTOMER

We have more than 10 years of experience proffession teams in the flexible space management. 3000+ m²factory, can ensure the delivery time no delay. Factory service directly will cut off the additional cost and get good price.



QUALITY GUARANTEE

Besides the professional talent and advanced technology,there are 3 professionals who reponsible for quality inspection.Before delivering the partition walls,they will check all of the production line for 3 times.



INTERNATIONAL COOPERATION BUNGE factory have more than 10 years experience in cooperating with the designers from all over the world.We often communicate and learn from each other, and they are vey satisfied with our planning for the partition walls.



INSTALLATION SUPERVISE

Besides the installation drawing and video, we have 18 engineers to supervise and install all over the word,ensure you can install the partition wall system smoothly and quickly.



EXCELLENT TEAMWORK

We have a stable and effecient team with more than 20 professional sales representitives,60 professional engineers(18 engineers responsible for installing),5 proffessional designers and 3 quality inspector,which formed a good atmosphere,ensured a quick production time,nice quality and services.



COMPANY HONNOR

We have more than 10 years experience of exporting the movable and folding partitions,getting the certificate with ISO9001 and SGS.We are the real manufacturer,we have our own factory with 3000 square meters and showroom with 200 square meters,welcome to visit us.



PROFESSIONAL DESIGN

Our designers have designed thousands of professional planning for our client.All of you only providing us the floor plan is ok,we will give you the professional idea based on everything at your site.We believe that we can meet the different demands of different clients.



QUICK PRODUCTION TIME

BUNGE Factory have more than 30 tons stocks of aluminum materials,including the aluminum tracks,frames and wheels.If the quantity is over 500 square meter,the delivery time is only 6 days.The most important is that we can ensure the quality all the time.

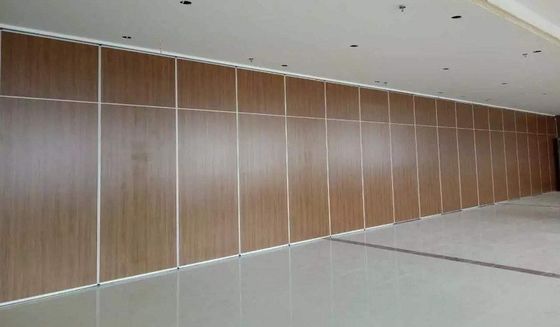

Soundproof Operable Movable Acoustic Partition Wall With Aluminium Tracks Rollers 2
