Soundproof Wooden Movable Partition Walls / Folding Partition Wall Systems
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ |
---|---|
Price: | US $ 78-125 per square meter |
Packaging Details: | Wooden boxes |
Delivery Time: | 7-15 days |
Payment Terms: | T/T |
Supply Ability: | 5000 square meter per month |
Detail Information |
|||
Product Name: | Movable Partition Walls | Surface: | Melamine |
---|---|---|---|
Feature: | Sound Proofing | Material: | MDF+Aluminum |
Application: | Conference Room,offices | Type: | Office Furniture |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

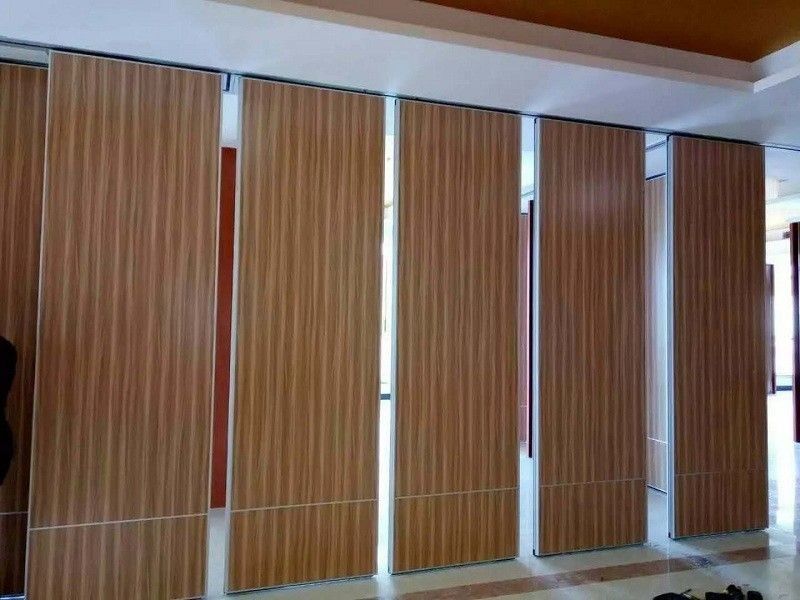

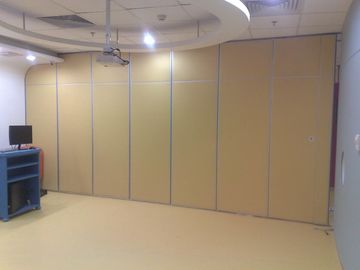

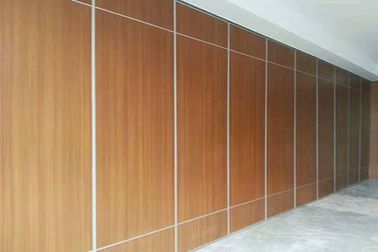

Conference Room Soundproof Wooden Folding Movable Partition Walls
BUNGE movable partition walls are specified where functional space delineation is an integral element within the movable partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centres, banks and restaurants.
Series
|
HS65(default)
|
HS80
|
HS100
|
Panel suspension
|
Top hung only
|
Top hung only
|
Top hung only
|
Panel thickness
|
65 mm
|
80 mm
|
100 mm
|
Max height
|
4000 mm
|
6000 mm
|
9000 mm
|
Panel width
|
500-1200 mm
|
500-1200 mm
|
500-1200 mm
|
Face material
|
9 mm
|
9 mm
|
9 mm
|

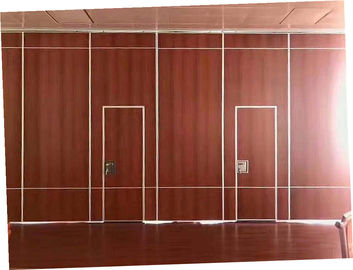

Pass doors
|
Single door or Double door
|
Single door or Double door
|
Single door or Double door
|
Sound insulation
|
32-40dB Rw
|
36-45dB Rw
|
40-53dB Rw
|
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure. We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Features of BUNGE Movable Partition Walls System
◆ No rail suspension: the floor has no track, just install the track on the ceiling
◆ Stable and safe: stable and reliable after partitioning, not easy to swing
◆ Sound insulation and environmental protection: sound insulation effect is good,the sound insulation coefficient can reach 53dB
◆ Insulation and energy saving: excellent thermal insulation performance,according to different occupancy rates,the movable walls can divide a large space into small spaces to reduce air conditioning power consumption
◆ Efficient fire prevention: movable partition walls are made of high-efficiency fireproof material and has good fireproof performance
◆ Retractable and flexible: the movable partition walls are freely retractable and flexible, and one person can complete the whole process of partitioning
Movable Partition Walls Details
Movable partition walls are made of high-quality anodized aluminum frame and environmentally friendly composite panels that move on ceiling tracks and do not require floor rails. The standard thickness of the panel is 65mm, 80mm and 100mm and the width is up to 1219mm. The maximum height is up to 17 meters high.
The movable partition walls consists of a series of interlocking panel and a quick set of foldable top and bottom seals. STC 32 to 53 is reached in the laboratory environment. Its excellent performance in sound insulation and the easy operation make it ideal for restaurants, schools, offices, religions, hospitals, shopping malls and many other indoor applications.
A wide range of finish options are available for movable partition walls: melamine faced MDF or particle board, fabric, carpet, leather, veneer, high pressure laminate, deck, acoustic board, white board. The panels can also supplied unfinished for site decoration.
