• MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant
  • MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant
  • MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant
  • MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant
MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant

Product Details:

Place of Origin: China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 85 mm acoustic room dividers

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars $ 78 / 128 per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: 10-25 days
Payment Terms: D/A, L/C, D/P, Western Union, MoneyGram, T/T
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Color: Accept Customized Thickness: 85 Mm(3 1/4 Inch)
Type: Commercial Furniture Style: Sliding
Height: 2-17 Meters Product Name: Acoustic Room Dividers
High Light:

conference room dividers

,

banquet hall room dividers

Product Description

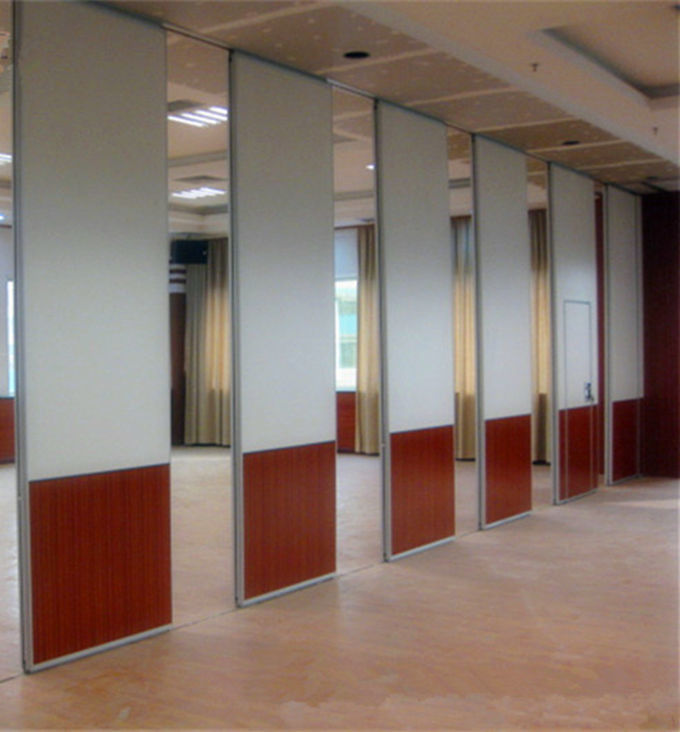

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant

MDF Finish Acoustic Wall Paper Movable Partition Walls Interior Room Divider For Restaurant



Details of Acoustic Room Dividers



1)Movable acoustic room dividers,sound insulation from 32 dB to Rw 50 dB.


2)To ensure additional friction connection, shall be integrated with magnetic strip.


3)Acoustic room dividers are easy element adjustment after installation.


4)Track system for sound proof room dividers shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.


5)Acoustic room dividers surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant 0



The Installing Procedure of Acoustic Room Dividers



1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.



2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.



3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.



4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.



5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.



6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.



7. The acoustic room dividers should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.



8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.



9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.



10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.



11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.



12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant 1



Technical Information:



Series BG65 BG80 / BG85 BG100 & BG125
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant 2

FAQ of Acoustic Room Dividers

Q1. Can I have a sample order for partition door

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the leading time?

Sample needs 3-5 days, mass production time needs 10-20 days for order quantity more than 300 square meter

Q3. Do you have any MOQ limit for partition door order?

Low MOQ, 20 square meter, because its big size and volume

Q4. How do you ship the samples and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. Do you provide installation?

We provide installation guide, in general, we send two person for installation instructions on site, customer need cover tickets, hotels, accommodations, 120-200USD one person per day for instructions

Q6. Is it OK to print my logo on packing?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

Yes, we offer 3 years warranty to our products.

MDF Finish Acoustic Movable Partition Wall / Interior Room Dividers For Restaurant 3
