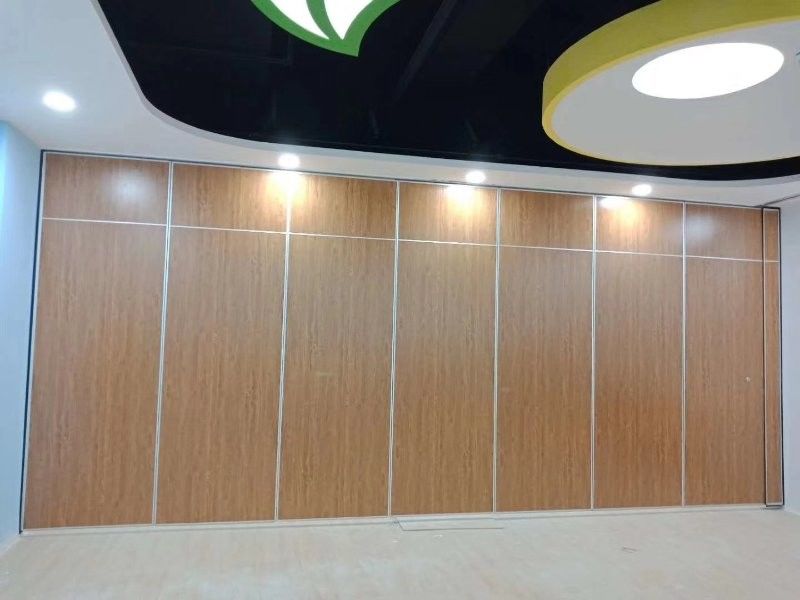

MDF Top Gypsum Board Movable Acoustic Partition Wall For School Classroom
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 138 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Feature: | Sound Insulation |
|---|---|---|---|
| Height: | 2000 - 15000 Mm | Colors: | Accept Customized |
| Application: | Conference Room,office | Size: | Can Be Customized |
| High Light: | acoustic operable partitions,acoustic operable wall |
||
Product Description
MDF Top Gypsum Board School Classroom Soundproofing Movable Acoustic Partition Walls
Details of Acoustic Partition Walls System
Acoustic partition walls – also known as sliding folding partitions, room divider or folding acoustic partitions – is globally recognized for their unparalleled quality, design flexibility, acoustic performance and durable durability. Our movable is manufactured in China and is made of aluminum frame and can be designed with the industry’s most comprehensive sizes, performance options and decorative surfaces.
We proudly manufacture in China and exports movable walls to many countries. There are mainly three different wall thicknesses. The use of thick aluminum frame durability can help achieve higher heights. A variety of acoustic and decorative surface designs are available.
The acoustic movable partition walls have a very wide range of construction styles to minimize sound conversion or absorb sound, thus minimizing acoustic room reflections.
Our acoustic partition wall is a movable soundproof room partition system which forms a removable wall. The movable walls are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, our movable wall has excellent soundproofing performance and they are hanging on an overhead track system
Specifications of BUNGE Movable Walls System
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape. | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Features of BUNGE Acoustic Partition Walls System
Extensive worldwide sales network that has proved that our movable walls work well worldwide.
Technical advice or design is available, no matter where your facility is.
Integrated space management and acoustic product solutions that can be more profitable and economical to use in your building environment.
From your first query to the completion of the project, we are here to support.
Based on years of experience in architectural and design challenges, provide industry-leading technology to solve your space problems.
Unique custom applications that is flexible enough to meet the needs of any customer.
Strong industry support for other acoustic problems, not just acoustic partition movable walls, but also acoustic wall and ceiling.
Common Applications of Acoustic jPartition Walls System
1. Studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2. Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3. Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4. Air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
Technical Specification of Acoustic Partition Walls System
Panel Configuration – The acoustic partition walls panels are customized to meet specific requirements. Each movable walls board thickness is 100mm and max width is 1200mm. Each movable acoustic partition wall panel is welded with a welded aluminum frame and 9mm MDF is mounted on both sides of the outer surface. The internal structure is made of steel mechanism, which combines excellent performance at the top and bottom of the telescopic sound seal. Internal space is filled with less than 64 kg/m3 glass wool.
Overhead track system – Specific aluminum alloy rails to meet the necessary stacking requirements. The intersection design should prevent the track wheel from falling into the track groove. Heavy-duty multi-way roller enables easy movement of the sliding partitions for rooms through the ceiling track.
The panel of movable wall has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
Sound Seal System – Built-in excellent retractable top and bottom seals are anodized by extruded aluminum channels, rubber sealed, and operated by a handle with a cap lock system with spring-loaded telescopic rods. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with rubber seal.
Top and bottom seals do not collected to the ceiling track and floor during panel’s movement. When the sound seals are combined, the movable walls panel is placed in a stable position, and the top and bottom seals are compressed on the rails and floors by tight acoustic seals, including adjustable telescopic panels.
