Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 85 mm movable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 90 / 135 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Systems Panel Thickness: 85 Mm
Height: 6 M Width: 500-1200 Mm
Position: Commercial Application: Restaurant,hotel
Panel Type: Melamine
High Light:

movable walls on wheels

,

movable partitions systems

Product Description

Sliding Aluminium Track Restaurant Movable Partitions Systems



Description:


Movable Partition Walls system, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.



Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.



Feature:


No floor rails: Top hung system without the need for a floor track.


Stable and safe: Stable and reliable after the partition, easy to swing.


Sound insulation: Sound insulation effect, the maximum sound insulation up to 570B, we can offer various levels of sound reduction.


Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.


Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.

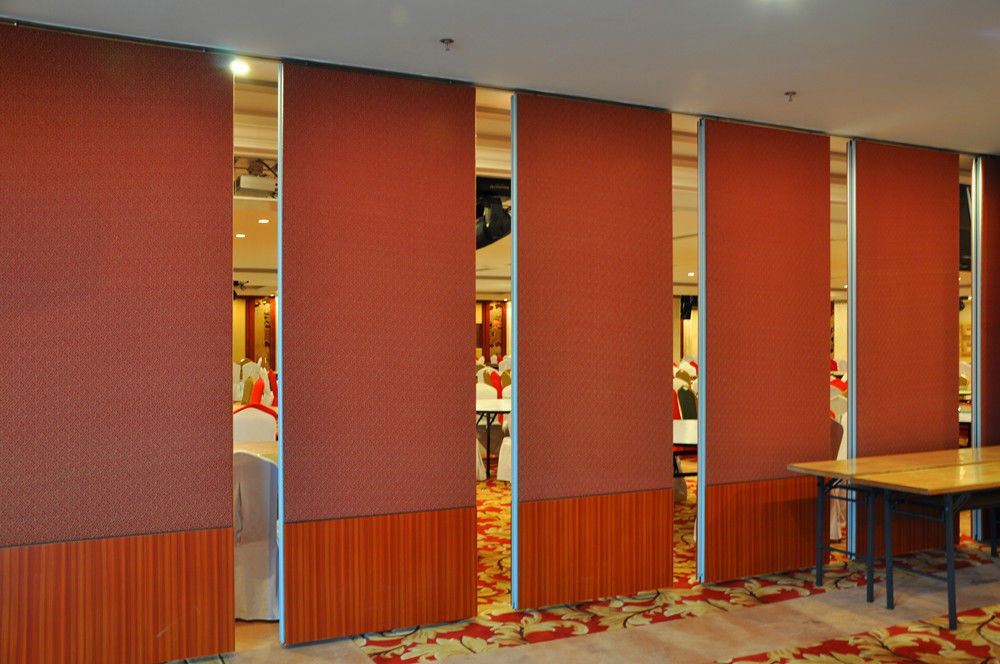

Decorative Material Restaurant Movable Partitions Systems Sliding Aluminium Track 0


Technical information:



Panel Suspension Top hanging system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum Or Steel Track
Roller on panel Single or Double Roller
Panel Frames Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel Surface MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.


Track system:


For single or paired panels up to 250kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.

For panel up to 225kg. Two carriers are provided per panel.



Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.

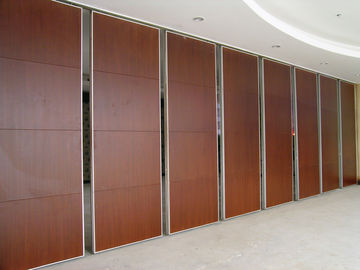

Decorative Material Restaurant Movable Partitions Systems Sliding Aluminium Track 1



Operate passing door:



Push the door in the door to the position where it should be placed and the screen in front is tight. Insert the handle into the groove on the side of the screen, and pull the handle upwards to open the air-seal seal screen on the inside of the screen to fix the screen.



Open the small door, insert the handle into the operation hole of the door leg on the other side of the screen, and pull the handle upwards to open the expansion screen on the other side of the screen to fix the screen.
