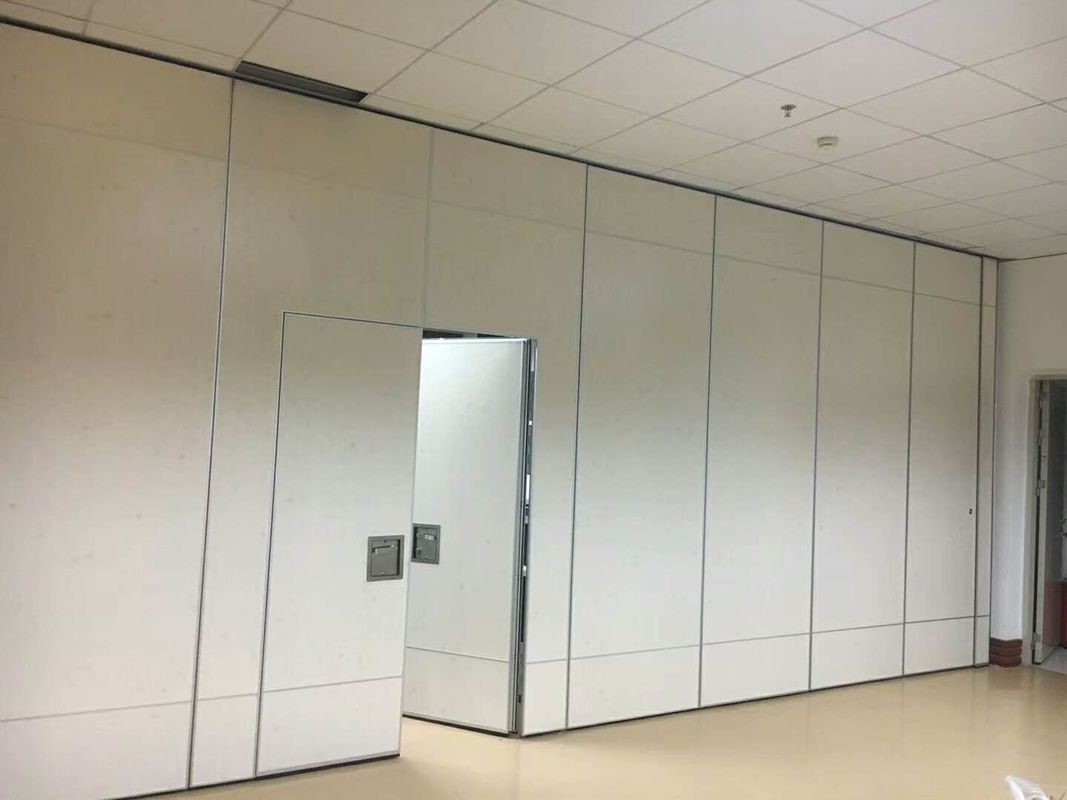

Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall
Product Details:
Place of Origin: | Guangdong |
Brand Name: | BANGE |
Certification: | ISO9001 |
Model Number: | 85 mm acoustic room dividers |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | US Dollars 80 - 120 per square meters |
Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 square meters per month |
Detail Information |
|||
Open Style: | Sliding | Product Name: | Acoustic Room Dividers |
---|---|---|---|
Feature: | Sound Proofing | Size: | 85 Mm |
Color: | Accept Customized | Application: | Banquet Hall,office,function Room |
Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
Width: | 85 Mm(3 1/4 Inch) | ||
High Light: | conference room dividers,banquet hall room dividers |
Product Description
Interior Wooden Sound Proofing Folding Wall Partitions Acoustic Room Dividers
Acoustic Room Dividers Details
Model: BG65,BG85,BG100
Acoustic Room Dividers thickness: 65mm~2.56inch, 85mm~3.35inch, 100mm~3.9inch
Board thickness: 9mm or 12mm
Blinds thickness: 16mm,25mm
Partition-wall standard length: ANY
Partition-wall standard height: 2000—13000mm, 78.7inch ~ 512inch
Optional material: Fabric/Melamine board/Glass/metal board/Aluminum Composite Panel/Soft panel/Blinds/Wooden board
Description partition wall / folding door / movable wall /
Characteristic: Movable / Stable Structure/ Sound insulation / Pro-environment/ fireproofing / Stylish
Product dominant: Design systematization / Industrialization productions / Standardization Installation / Diversification working / Modernization appearance
Service: Supply consulting service, CAD project, office layout design /Work environment consulting /Products instruction
Sales Countries: Mace in china. Sales all over the world.
Specifications of Acoustic Room Dividers System
TYPE
|
BG65 | BG85 | BG100 |
Panel suspension
|
Top hung only
|
||
Track system
|
Single or twin point
|
||
Panel thickness
|
65MM
|
85MM
|
100MM OR 125MM
|
Panel height
|
Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept
|
Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
|
|
Max height
|
4000mm with heavy duty track
|
6000mm with heavy duty track
|
18000mm with heavy duty track or steel track
|
Panel width
|
600-1200mm
|
||
Frame construction
|
Aluminium
|
Aluminium
|
Aluminium/steel
|
Face material
|
9mm/12mm
|
9mm/12mm
|
9mm/12mm/15mm
|
Fire safety
|
optional Class I or O
|
||
Vertical profiles
|
Aluminium,anodised with sealing
profiles,painted-optional
|
Aluminium,anodised with sealing profiles,painted-optional
|
Aluminium,anodised with sealing profiles,painted-optional
|
Retractable seals
|
Aluminium,black with double rubber seals
|
Aluminium,black with double rubber seals
|
Aluminium,black with double rubber seals
|
Operation of seals
|
Manual,with supplied operating handle
|
||
Locking
|
Optional lock to pass doors
|
||
Pass Doors
|
Single open in oanel or double open in two panel
|
||
Sound insulation
|
41,43,48dB Rw
|
43,48,51,53dB Rw
|
48,51,53,58dB Rw
|
Weight
|
Approx 33-40kg/sq M
|
Approx 43-50kg/sq M
|
Approx 63-70kg/sq M
|
The features of Acoustic Room Dividers
1.The materials of acoustic room dividers are varied and varied, and the characteristics of the hotel can be selected according to the overall decoration style of the hotel.
2.The outer frame that can be cut into the hotel is made of aluminum alloy, and its decorative surface is satisfied according to the customer's needs. For example, the veneer is made of non-combustible material and has strong fireproofing material. And the sound insulation effect of the partition is also very good.
3.The acoustic room divider is highly utilized, its design is the integration of parts, which is to facilitate the better combination, so its combination is powerful, it can be reused, which reduces the cost of customers, can also achieve environmental protection. Energy saving and other functions.
4.The installation period of the acoustic room divider can be short, and the pollution of the construction is small, so that the entire project can be quickly improved. Efficiently meet the needs of customers.
5.The choice of acoustic room dividers can be varied, according to the needs of the hotel, use different kinds of partitions, choose the partition suitable for the hotel style, will bring more aura to the hotel.
The acoustic room divider is skillfully used in various places of the hotel, bringing a variety of convenience and beauty, and is well received by customers.
6.The surface decoration surface of the acoustic room dividers can have various choices. According to the family, the decorative surface of the hotel can be compared with the matching style according to the style of the home, which can make the whole environment look new.
7.The biggest feature of the acoustic room divider is that it can be moved and can be reused. Its material will not bring waste to the environment. Therefore, the movable partition material is a green material. For example, many company addresses will be continuously relocated. Then the company needs to consider the reusability of the company's installed activity partition, which is more convenient for the user's service life, so it is a relatively cheap and cost-effective decoration.
8.Can be into a acoustic room dividers of the material of a variety of colors, a variety of material components can be used in conjunction with each other, which can reduce material waste. It is efficient, stylish, elegant, concise, generous, beautiful and exquisite.
