Office Movable Partition Walls Accordion Commercial Aluminium Profile
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 119 / 128 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Color: | Multi Color | Panel Type: | Melamine |
|---|---|---|---|
| Application: | Conference Hall, Office | Service: | OEM Service |
| Metal Type: | Aluminium | Thickness: | 85 Mm |
| Open Style: | Folding | Position: | Commercial |
| Function: | Soundproof | Width: | 500-1200 Mm |
| Height: | 6 M | ||
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

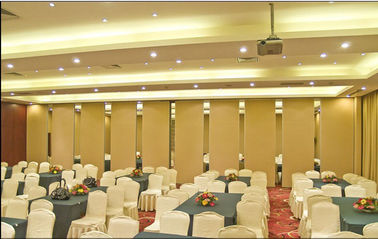

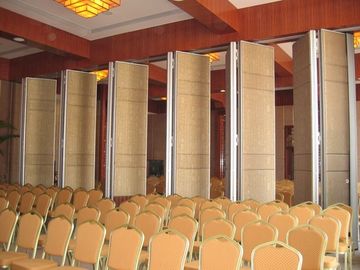

Aluminium Profile Conference Room Movable Partition Walls
Description:
Acoustic Operable Walls / Movable Partition Systems offer a unique facility for utilising available space in the most practical manner.
They allow a large space to be converted into smaller, separate areas, which can be converted back to a large space with the minimum of effort. Handled well and serviced regularly, they will give many years of trouble free service.
Operable Wall can source, install and maintain a wide range of Operable Walls , Moveable Partitions, Sliding Door Systems and Room Dividers from the top manufacturers and extremely competitive rates.
All installations include initial requirement assessment, on-site training in use and care as well as optional maintenance servicing contracts.
Feature:
Due to the movable partition walls flexibility and cost effectiveness, it allows large rooms to be conveniently sub-divided to maximize space utilization.
Operable wall material is customed built to suit the specified requirement. Movable partition system can be made from aluminium, gypsum, MDF, melamine-faced particleboard, plasterboard, plastic, PVC, softwood, stainless steel or wood veneer.
Structure:
To create a better sound insulation folding partition wall door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand Owens Corning which is the best sound insulation cotton manufacturer.
Technical information:
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Technical information:
Rubber sealing materials plays an important role in modern sound insulation technology, especially in doors, windows, cars, etc.
Our sealing rubber materials made by high quality EPDM rubber, foam production process.
Have outstanding temperature resistance, optimum hardness and mechanical strength for long lasting sealing results, Ozone resistance, resistance to chemical corrosion properties.
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Panel Surface Finish:The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Advantage:
Panel faces are suspended from a steel frame with just 2 points of contact. The edges of panel faces are slotted into aluminium profiles.
This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimize the transfer of sound waves through the system.
Each panel has an extruded aluminium male profile to one vertical edge and a female profile to the other.These profiles are fitted with magnetic membranes which ensure positive interlocking of the panels.
Once the wall panels have been adjusted for height and level the roller stems are locked with a fail-safe mechanism to ensure that the panels will align perfectly every time the wall is set up.
Pressure seals extend from the top and bottom of each panel exerting a closing pressure of 2kn providing panel stability and excellent acoustic sealing.
