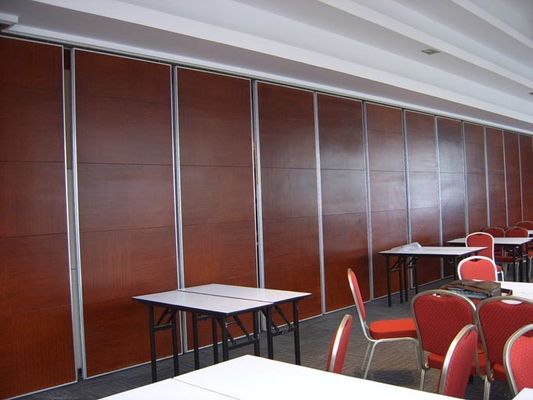

Banquet Hall Removable Partition Wall With MDF Board + Aluminium Material
|Place of Origin:||Guangdong,China|
|Model Number:||85 mm wooden partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||120 / 132 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Thickness:||85 Mm||Material:||MDF Board+Aluminium|
|Height:||6 M||Service:||OEM Service|
|Color:||Multi Color||Width:||500-1200 Mm|
|Panel Style:||Melamine||Open Style:||Sliding|
acoustic operable partitions,
acoustic operable wall
Interior Folding Doors Interior Design Removable Wooden Partition Wall
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts. Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Acoustics movable wall offers unique custom made Acoustic Movable Wall Partitions which facilitates in managing.
Your space to its maximum capacity. Our Acoustic Movable wall partition system constitutes of panels.
Suspended individually from the rail fixed to the top of the roof. The Acoustic Movable wall partition has retractable top and bottom seals which interlocks each panel to its position. If required, hinged pass doors shall be provided through the Acoustic Movable Wall Partition where access is required.
Top hung with no floor track.
Scissor-jack operating mechanism.
Available with virtually any surface finish.
Ideal for conference centres, hotels, offices & schools.
Angled, glazed, corner or junction panels for maximum flexibility.
Single or double point suspension for versatile stacking options.
Panels with hinged pass door, single or double leaf inset pass door panels for access through.
Full maintenance contracts available.
Stable and self-supporting frame construction.
Flexibility through wide variety of panel arrangements.
Smooth and silent while in operation.
Good acoustic performance.
Availability of unlimited choice of finishes.
Operable partition is made of high quality anodized aluminum frame with composite materials.The panel has a standard thickness of 65 mm and a width up to 1200 mm.Maximum height can reach 4500 mm tall.Its vertical seal.together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 45 db in laboratory setting.Its high performance per dollar value make it becomes the most economical suitable for restaurant,schools,office,church,hospitals,shopping arcades and many other indoor applications product.
For single or paired panels up to 250kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.
For Omani-directional panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.|
The movable partition is removable, removable and configuration, so the partition of the activity has the reputation of removable decoration. Activity partition has high sound insulation, fire prevention, portable, simple operation, etc. Is very suitable for star hotel banquet hall, high-grade restaurant rooms, office meeting room and other places for the use of the space between. According to the survey analysis shows that the active partition products have been widely used in hotels, hotel, banquet hall, multi-function hall, conference room, office buildings, exhibition halls, financial institutions, government offices, hospitals, factories and other occasions.
