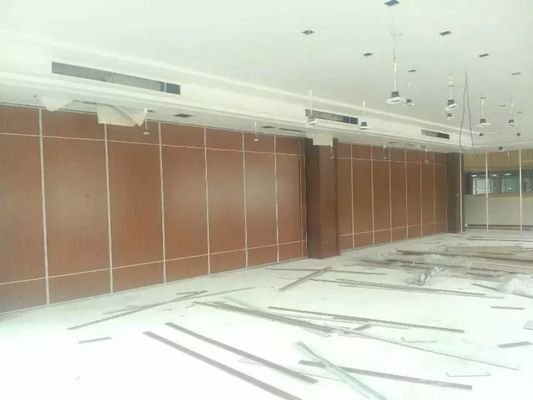

Office Singapore Wooden Partition Wall , Interior Movable Sliding Folding Doors
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 65 mm wooden partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||110 / 128 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Service:||OEM Service||Metal Type:||Aluminium|
|Height:||4 M||Width:||500-1200 Mm|
|Thickness:||65 Mm||Panel Type:||Melamine|
|Application:||Office, Banquet Hall||Color:||Multi Color|
acoustic operable wall,
movable acoustic partition walls
Decorative Panels Sliding Doors Office Wooden Partition Wall
1. How does the hotel's activity cut-off solve the basic functions, provide comprehensive, convenient, safe, and high-quality services, while at the same time creating high-level cultural tastes and artistic standards. Hotel activities can not be separated by the pursuit of pearl treasure, visual impact will cause aesthetic fatigue, luxury decoration does not mean high grade.
2.How to better reflect the people-oriented, functional relationships, spatial layout, traffic organization and environmental construction how to provide guests with comprehensive, convenient, high-quality services, and now some hotels do not reflect the basic idea of people-oriented.
3.It is necessary to pay attention to the excessive consumption and waste of resources while pursuing high comfort.
4. How to get rid of tedious, cluttered, piled up, and copied errors in the design of interior design and decoration style, and more to demonstrate the heritage of inheritance, originality, rationality, and simplicity.
5.It is the application of a large number of new materials, new equipment at the same time, how to make the five-star hotel more distinctive personality and geographical characteristics, especially how the brand hotel respects the local cultural traditions, to show the cultural diversity of different regions and ethnic groups.
Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Improved sound insulation with a reduced wall thickness.
|Panel suspension||Top hung only|
|Track system||Single or twin point|
|Panel thickness||65 mm||85 mm||100 mm|
|Panel height||Up to 4000mm,heights greater than 3000mm refer to our technical dept.||Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.|
500 - 1200mm
1' 5/8" -- 4'
500 - 1200mm
1' 5/8" -- 4'
500 - 1200mm
1' 5/8" -- 4'
|Fire safety||Optional class I||Optional class I||Optional class I|
|Vertical profiles||Aluminum, anodized with sealing profiles, painter optional||Aluminum, anodized with sealing profiles, painter optional||Aluminum, anodized with sealing profiles, painter optional|
|Retractable seals||Aluminum, black with double rubber seals||Aluminum, black with double rubber seals||Aluminum, black with double rubber seals|
|Operation of seals||Manual, with supplied operating handle|
|Locking||Optional lock to passing doors|
|Passing doors||Single open in one panel or double open in two panel|
|Sound insulation||32-38dB Rw||36-45dB Rw||42-55dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx 30-48kg/sq M|
Movable walls can be applied in hotels, Muti-functions halls, Meeting Room, Convention Center, Residential area, College and School, Banquet hall, Training rooms etc. We provide quality and reliable services at very cost effective prices .
The partitions shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.
(1)Constructing location: keep dry, the temperature should be higher than 10'C, the widest humidity range should confined to 40%-60% after construction 24 hours before constructing, the location should reach the standards as above.
(2)Acoustic panels: for the acoustic panels accommodated to the circumstance of constructing, please place the panels in the constructing location for 48 hours, check up the type, specification and amount of the panels before constructing.
(3)Keels: fix the keels on the wall flatly according to the plan, the keels should be flat, slick, no rust, no metamorphosis; the wall must be construct according to the standards, the keels suitable install with acoustic panels, leave smaller than 500mm space between each wooden keel(smaller than 600mm of light steel keel), install the keels vertically with acoustic panels.
