Aluminium Alloy Melamine Surface Soundproof Movable Wall Partition 65 mm Thickness
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 65 mm movable wall partition|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||89 / 139 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Height:||4 M||Application:||Conference Room,banquet Hall|
|Width:||500-1200 Mm||Product Name:||Movable Partition Wall|
|Position:||Commercial||Sliding Door Type:||Folding Doors|
movable walls on wheels,
movable partitions systems

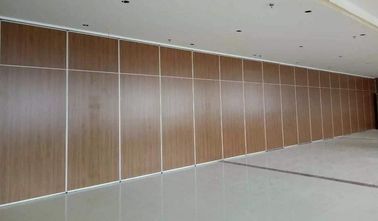

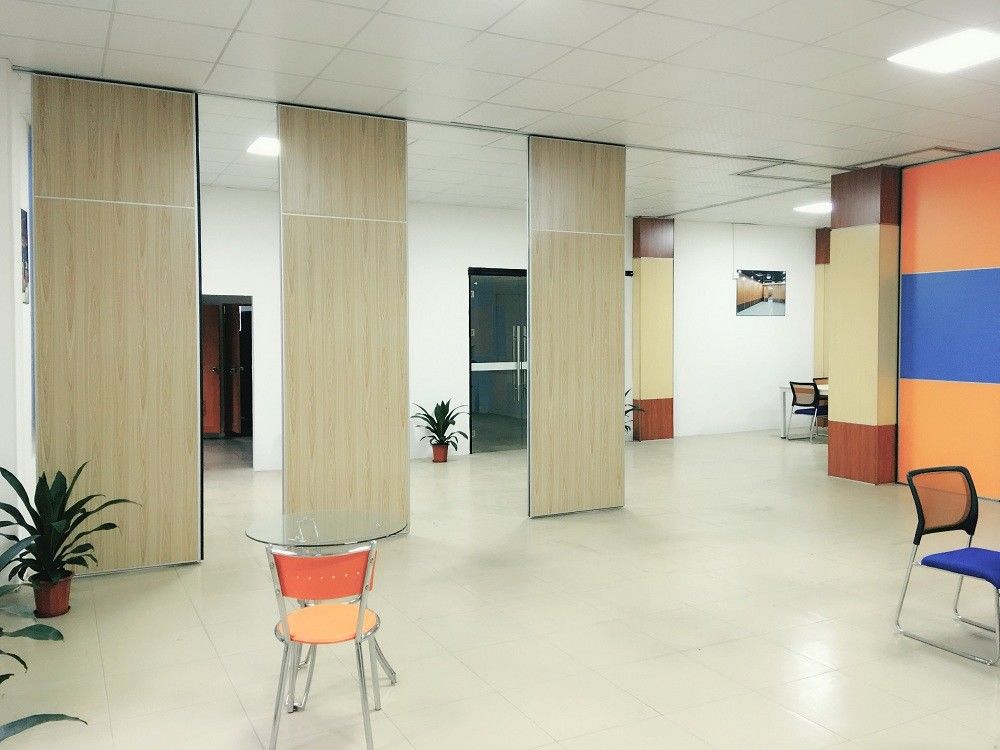

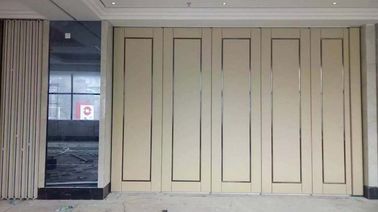

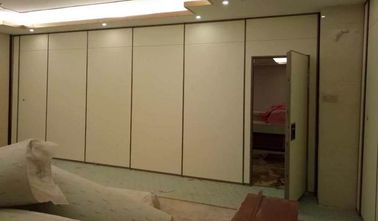

Aluminium Alloy Melamine Surface Soundproof Movable Wall Partition
The movable wall partition is a separation tool for general space. In real life, places that require the use of active partitions are everywhere. The active partition allows us to make better use of the limited space and greatly increase the space utilization rate. BUNGE is a supplier of active partitions, it has cut off its brands for years. It has integrated technical features of the market to cut off product features.
1. The movable partition has a good sound insulation effect and is called active sound insulation wall. It is a good choice for office decoration, hotel decoration restaurant banquet hall and event room partition.
2. When the activity is cut off, its main frame adopts standard T6 anode aluminum, which is not easily deformed, corroded or has spots, but its weight is relatively light. On the two sides of the movable partition panel, we can apply wallpaper, cover cloth (soft pack), stick solid wood or other things on the panel, and the decorative surface of the movable partition can be varied.
3. In the interior of the activity partition, the whole screen is fixed with solid wood strips, so that the active partition door panel is stable without being bulky; the upper and lower retractable mechanisms are installed so that the pressure strips at the upper and lower ends of the movable partition can be freely retracted to achieve the effect of fixed partition and sound insulation. In addition, in order to further enhance the soundproofing effect of the partition, the interior of the partition is filled with fiberglass insulation wool.
4. It is simple and quick to install the activity partition. In the earlier period, we only needed to weld steel structures on the ceiling of the ceiling slab to connect aluminum alloy rails without any need for rails. There is a small section of track in the track that can be removed at any time. We call it the "original track." When we want to hang the door to the partition, we only need to dismantle it, hang the door up, and then slightly adjust it. It can be used normally.
5. The parts used in the production of production partitions are not easily damaged. The active partition has the remarkable feature of long service life.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Movable Partition Wall Feature:
Top hung without track at floor level.
Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with controls.
Single or two point suspension for center or remote parking options.
Variable track arrangements for corner, three or four way abutments.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Our Top Hung movable partition walls were designed specifically with the office refurbishment sector in mind. With sound attentions available from 37dB RW to 53 dB RW, there is no acoustic issue between rooms that the Top Hung Operable Wall cannot cater for.
Sound reduction dB ratings are often quoted from laboratory test results which are misleading in respect of final performance values. They are merely useful for initial specification purposes. Independent on-site tests as carried out by partners are recommended as in-situ results will differ from laboratory test certification and are therefore the only true guide to achievable sound attenuation.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
