Banquet Hall Acoustic Room Dividers , Floor to Ceiling Sliding Partition Wall
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 85 mm acoustic room divider|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||97 / 141 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Service:||OEM Service||Height:||6 M|
|Width:||500-1200 Mm||Thickness:||85 Mm|
|Metal Type:||Aluminium||Open Style:||Folding|
sound proof room divider,
banquet hall room dividers

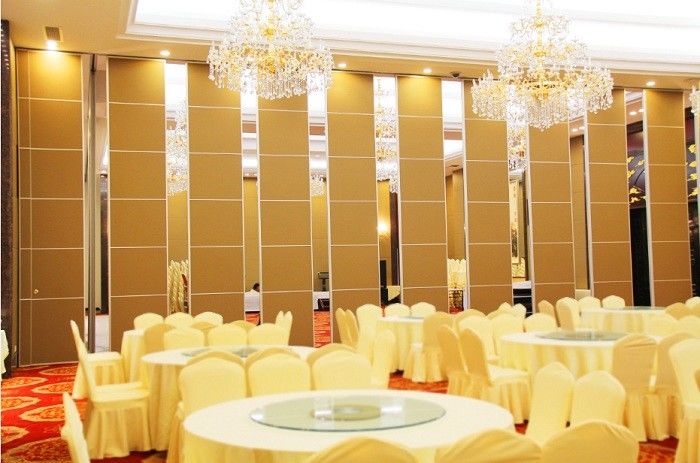

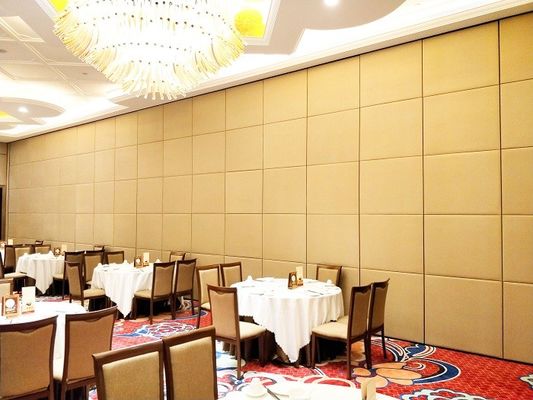

Floor to Ceiling Partition Wall Acoustic Room Divider
The sound-proof sliding partition walls are a new way to divide spaces with elegance, while respecting the architectural environment in which they are inserted. They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall. It is not necessary any guidance on the floor, handling the elements is simple, fast and safe. The advantage of a soundproof sliding wall is essentially to occupy reduced space when it is stored, and when the wall is composed of all its elements.
Can be used to limit noise transmission between rooms by using optional dense cladding and internal insulation. Bunge panels have been tested to achieve sound reduction ratings of up to Rw 59 dB, measured in accordance with BS EN ISO 140-3. Can be used to adjust room reverberation time using optional textile coverings or optional perforated over cladding.
Available with optional fire separation construction. Particular fire rating may not be available in all panel types and finishes. Consult manufacturer prior to specification. Available with optional finishes from standard range rated Class 1 Surface Spread of Flame when tested to BS EN 476 or Class 0, in accordance with Building Regulations (E&W) Approved Document B.
The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
The Panels will be made from 9 mm MDF boards and shall be 85 mm thick and 1220 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
|Panel suspension||Top hung only|
|Track system||Single or twin point|
|Panel thickness||65 mm||85 mm||100 mm|
|Panel height||Up to 4000mm,heights greater than 3000mm refer to our technical dept.||Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.|
500 - 1200mm
1' 5/8" -- 4'
500 - 1200mm
1' 5/8" -- 4'
500 - 1200mm
1' 5/8" -- 4'
|Fire safety||Optional class I||Optional class I||Optional class I|
|Vertical profiles||Aluminum, anodized with sealing profiles, painter optional||Aluminum, anodized with sealing profiles, painter optional||Aluminum, anodized with sealing profiles, painter optional|
|Retractable seals||Aluminum, black with double rubber seals||Aluminum, black with double rubber seals||Aluminum, black with double rubber seals|
|Operation of seals||Manual, with supplied operating handle|
|Locking||Optional lock to passing doors|
|Passing doors||Single open in one panel or double open in two panel|
|Sound insulation||32-38dB Rw||36-45dB Rw||42-55dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx 30-48kg/sq M|
Acoustic backed textile over cladding: With absorbent board backing.
Acoustic rigid over cladding: Choice of perforation and board finish, including veneers and spray paint as standard. Additional panel thickness: 9 mm minimum.
Acoustic stretched textile over cladding: Tension-ed over frame without backing.
Laminate: Available in manufacturer's colour range, RAL colors and wood grains.
Melamine: Available in manufacturer's colour range. RAL colors and wood-grains from GLAM.
Veneer: Available in manufacturer's range.
Dry wipe. Available in manufacturer's range.
Magnetic whiteboard. Available in manufacturer's range.
