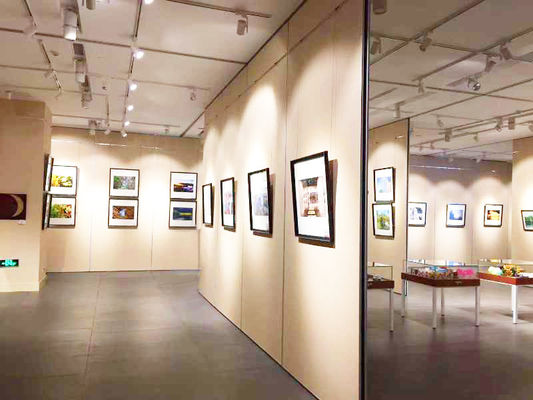

Sliding Wall Panels , Sound Insulation Movable Partition Wall with Double Rollers
|Place of Origin:||Guangdong|
|Model Number:||85 mm movable partitions|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||US Dollars 80 - 120 per square meters|
|Packaging Details:||Carton package, MDF batten on four section sides , foam board on both front face.|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50000 square meters per month|
|Feature:||Voice Insulation||System:||Hanging System|
|Panel Width:||500 Mm--1220 Mm||Application:||Hotel,banquet Hall|
|Style:||Sliding||Product Name:||Movable Partitions|
|Material:||MDF + Aluminum||Position:||Interior|
|Technic:||Double Rollers||Thickness:||85 Mm(3 1/4 Inch)|
movable walls on wheels,
movable partitions systems
Sound Proofing Sliding Wall Panel,Sound Insulation Movable Partition with Double Rollers
- Movable, top hung system without the need for a floor track.
- Retractable top and bottom seals ensure effortless movement of panels.
- Combines elegance with robust construction.
- Concealed or exposed panel edge profiles.
- Numerous panel stacking options for complete flexibility.
- Sealed for life roller assemblies provide smooth and silent movement.
- The system offers various levels of sound reduction.
Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
Retractable Pressure Seals-Once the panel is positioned, they are sealed in place with retractable pressure seals
Telescopic sleeve panel-Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.
|Movable Partition Walls System-Technical Information|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel height||Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept||Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional|
|Max height||4000mm with heavy duty track||6000mm with heavy duty track||18000mm with heavy duty track or steel track|
|Fire safety||optional Class I or O||optional Class I or O||optional Class I or O|
|Vertical profiles||Aluminium,anodised with sealing profiles,painted-optional||Aluminium,anodised with sealing profiles,painted-optional||Aluminium,anodised with sealing profiles,painted-optional|
|Retractable seals||Aluminium,black with double rubber seals||Aluminium,black with double rubber seals||Aluminium,black with double rubber seals|
|Operation of seals||Manual,with supplied operating handle||Manual,with supplied operating handle||Manual,with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass Doors||Single open in oanel or double open in two panel||Single open in oanel or double open in two panel||Single open in oanel or double open in two panel|
|Sound insulation||40,44,47,50dB Rw||40,44,47,50,53dB Rw||40,44,47,50,53,58dB Rw|
|Weight||Approx 33-40kg/sq M||Approx 43-50kg/sq M||Approx 63-70kg/sq M|
