MDF Panel Aluminum Alloy Frame Folding Movable Partition Walls For Banquet hall
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 80 / 120 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Material: | Melamine,wooden | Product Name: | Movable Partition Wall |
|---|---|---|---|
| Thickness: | 65 Mm | Width: | 500/1200 Mm |
| Height: | 4 M | Structure: | Aluminum Track,Trolley Bearing,Acoustic Door Panel |
| Certificate: | ISO9001 | Application: | Banquet Hall,restaurant,hotel,function Room |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
MDF Panel Aluminum Alloy Frame Folding Movable Partition Wall For Banquet hall
Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Usage:
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||

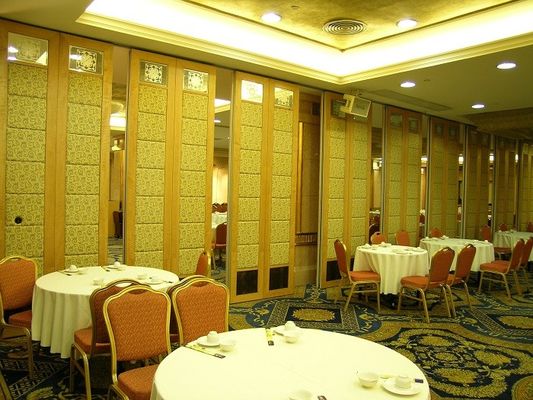

Case show:
Advantage:
With more economy and higher decorative, beautiful and safe, will not scratch the skin.
Installation does not affect the construction of smallpox and the ground.
Optional with a variety of occasions partition wall, can be customized according to customer requirements.
In the re-assembly can make full use of building materials.
Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
