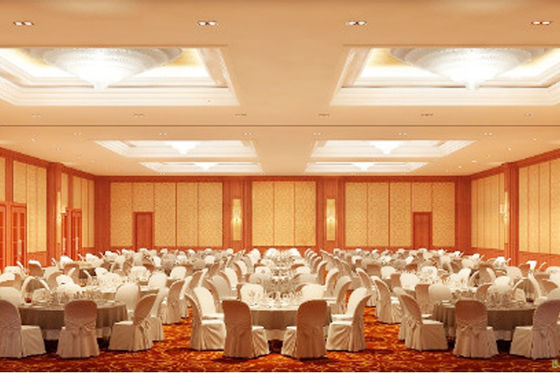

Sliding Doors Aluminum Frame Movable Partition Walls For Banquet Hall
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 65 mm movable partition wall|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||75 / 120 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Material:||Melamine,wooden||Product Name:||Movable Partition Wall|
|Thickness:||65 Mm||Width:||500/1200 Mm|
|Height:||4 M||Structure:||Aluminum Track,Trolley Bearing,Acoustic Door Panel|
|Certificate:||ISO9001||Application:||Banquet Hall,restaurant,hotel,function Room|
movable walls on wheels,
movable partitions systems
Sliding Doors Wooden Surface Aluminum Frame Movable Partition Walls For Banquet Hall
Our office movable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Combines elegance with robust construction.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Sealed for life roller assemblies provide smooth and silent movement.
The system offers various levels of sound reduction.
Extensive range of surface finishes available.
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
