Custom Hanging Partition Panel / Wooden Partition Wall For Convention Hall
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 85 mm wooden partition wall|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||75 / 120 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Material:||Melamine,wooden||Product Name:||Wooden Partition Wall|
|Thickness:||85 Mm||Width:||500/1200 Mm|
|Height:||6 M||Structure:||Aluminum Track,Trolley Bearing,Acoustic Door Panel|
|Certificate:||ISO9001||Application:||Restaurant,banquet Hall,conference Room|
acoustic operable wall,
movable acoustic partition walls

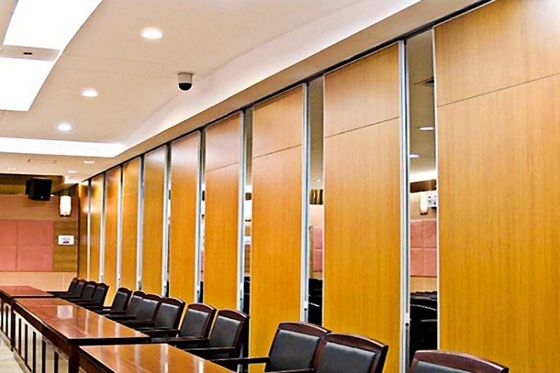

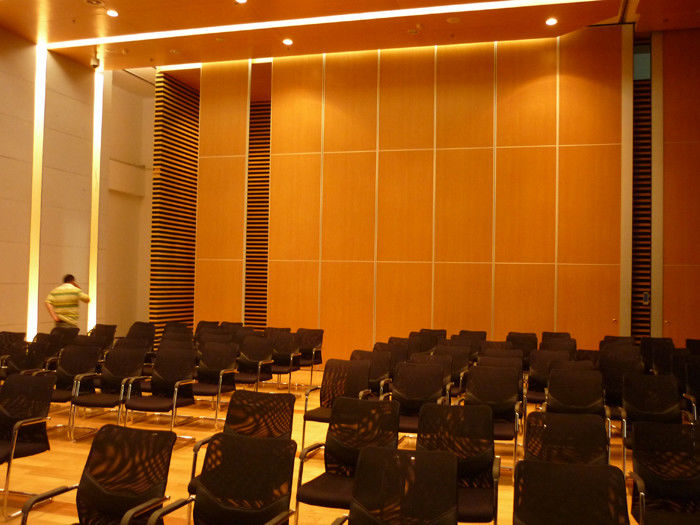

Custom Design Hanging Partition Panel Movable Wooden Partition Wall For Convention Hall
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
With more economy and higher decorative, beautiful and safe, will not scratch the skin.
Installation does not affect the construction of smallpox and the ground.
Optional with a variety of occasions partition wall, can be customized according to customer requirements.
In the re-assembly can make full use of building materials.
Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
