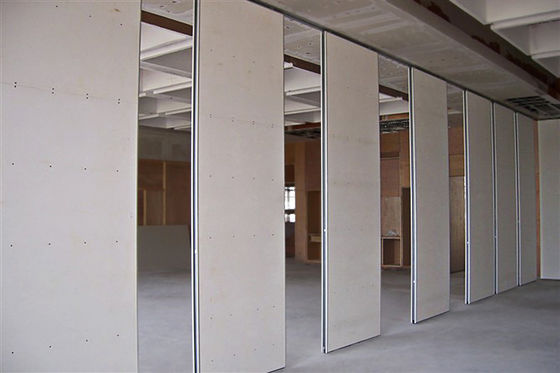

Commercial Furniture Office Partition Walls / Sound Insulation Movable Partition Door
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 squaremeters |
|---|---|
| Price: | 82 / 118 dollars per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 squaremeters per month |
|
Detail Information |
|||
| Panel Width: | 500 Mm--1220 Mm (Accept Customized) | Material: | MDF+Aluminum |
|---|---|---|---|
| Application: | Hotel,office ,conferance Room | Color: | Color Selective (Customized) |
| Thickness: | 85 Mm(3 1/4 Inch) | Finishing: | Melanimine,fabric,leather Etc. |
| STC Conffcient: | 32/50db | Feature: | Voice Insulation |
| Highlight: | movable partitions systems,acoustic movable walls |
||
Product Description
Commercial Furniture Office Partition Walls / Sound Insulation Movable Partition Door
Partition door mechanism structure
To create a better sound insulation movable partition door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand " Owens Corning" which is the best sound insulation cotton manufacturer.
Bunge Operable Wall Systems-Technical Information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
The section configuration
1) feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
2) substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
3) surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
Suitable used in:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
We Offer:
A full professional design service
Survey and installation guide
Using top quality materials and components
A fully experienced work team
Maintenance contracts to ensure your valuable asset remains in full work order.
