Customized Foldable Movable Hanging Partition Walls 6 Meters Height
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 squaremeters |
|---|---|
| Price: | 72/ 118dollars per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 squaremeters per month |
|
Detail Information |
|||
| Panel Width: | 500-1220(customized) | Thickness: | 65mm (2 9/16inch) |
|---|---|---|---|
| Feature: | Sound Proofing | Material: | MDF + Aluminum |
| Height: | 6 Meters | Application: | Banquet Hall/Conference Room |
| System: | Hanging System | Color: | Color Selective(customized) |
| Highlight: | movable walls on wheels,acoustic movable walls |
||
Product Description

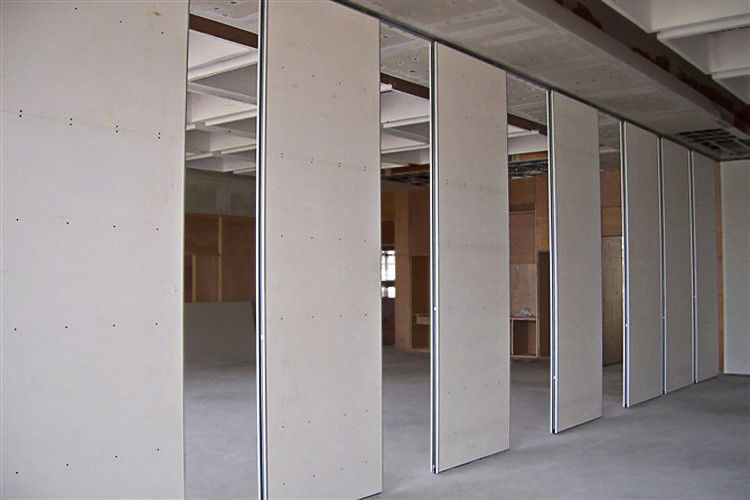

Customized Sound-proofing Folding Movable Partition Walls for Banquet Hall
Specification:
1) Easy element adjustment after installation.
2) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3) Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
4) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
Advantages :
1) Resistant to water , moisture and mold, antibiosis and easy to clean
2) many sizes: board with thickness from 2mm to 25mm can be made
3) Resistant to abrasion, scratches, and impact
4) Resistant to fire, heat, and cigarette burns
Bunge Operable Wall Systems-Technical Information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
About us
BUNGE works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.
