• Top Hung  Sound Absorption Panels Plywood / Gypsum Movable Partition
Top Hung  Sound Absorption Panels Plywood / Gypsum Movable Partition

Top Hung Sound Absorption Panels Plywood / Gypsum Movable Partition

Product Details:

Place of Origin: China
Brand Name: BUNGE
Model Number: Type85

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square Meters
Price: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Material: Fabric , Wall Paper Open Style: Movable And Operable Partition System
Thickness: 85mm Height: 2000 - 6000mm
Acoustic Rating DB (RW): 39 / 46 Application: Hotel , Hall .meeting Room And So On
High Light:

movable sound proof partitions

,

movable soundproof partition

Product Description





Top Hung Movable Partition , Room Folding Sound Proof Partitions ,  85mm  Panel





Specifications



Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 6000mm

Sound proof

38 - 45db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25 - 42 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual




The Accessories Of Movable And Operable Partition System



Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .


Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .





Movable And Operable Partition System Application :

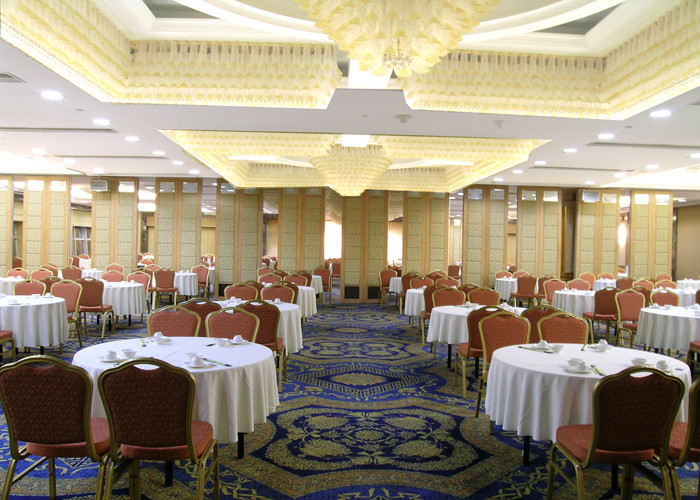

It's widely used at huge stadium, cinema, meeting room , office room, music hall , theather and work shops etc . any places where need sound absorption can use this products .





Operation :



Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.





Trolley



BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .





Track :



The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .



Top Hung  Sound Absorption Panels Plywood / Gypsum Movable Partition 0



Top Hung  Sound Absorption Panels Plywood / Gypsum Movable Partition 1
