Contemporary Aluminum Frame Restaurant Sound Proof Partitions For Ballroom
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | Type 85 sound proof partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partition | Application: | Ballroom Partition Wall |
|---|---|---|---|
| Finishing: | Fabric + Melamine | Wheels Material: | POM |
| Color: | Wood Grain | Weight: | 30 Kg/m² |
| High Light: | Contemporary Ballroom Sound Proof Partitions,30kg/m2 Sound Proof Partitions |
||
Product Description

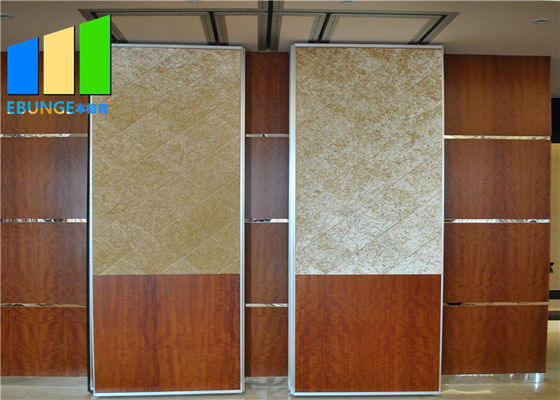

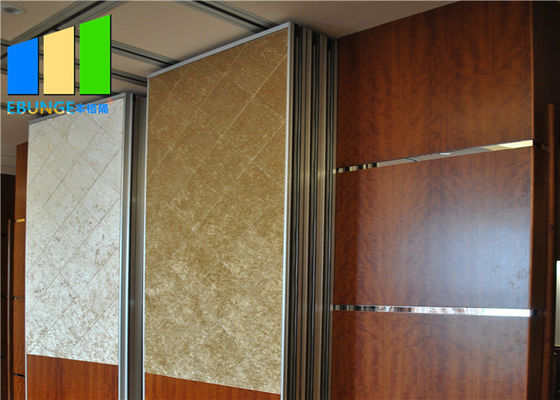

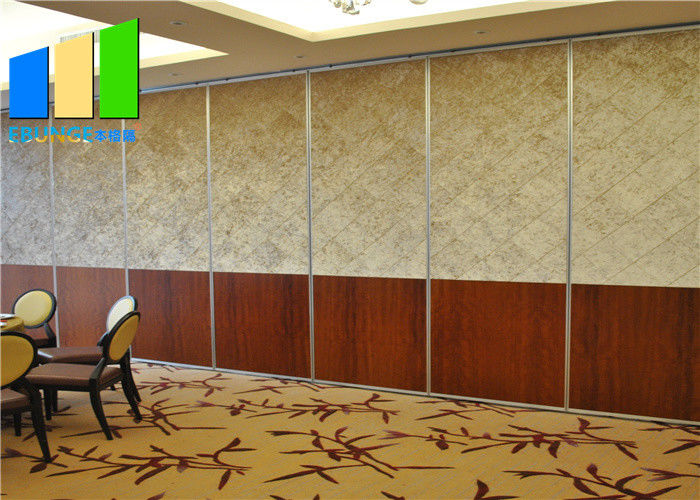

Contemporary Aluminum Frame Restaurant Sound Proof Partitions for Ballroom
Sound proof partition suspension detail
A. Suspension Tracks: Each sound proof partition panel is suspended on one 4-wheel ball-bearing trolley or two multi-directional polymer trolleys. The individual panel is adjustable in height without the opening of the ceiling or panel.
B. Carriers: Trolley system as required for configuration type, size, and weight of partition and for easy operation; with ball-bearing wheels.
Multidirectional Carriers: Capable of negotiating 90-degree L, T, and X intersections without track switches.
C. Track Intersections, Switches, and Accessories: As required for type of operation, storage, track configuration, and layout indicated for sound proof partitions, and compatible with partition assembly specified. Fabricate track intersections and switches from steel or aluminum.
D. Aluminum Finish: Manufacturer's standard, factory-applied, decorative finish, unless otherwise indicated.
Technical Information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Sound proof partition features
All of our sound proof partitions are of the highest quality, very robust and easy to collect, and manufactured in China, the sound proof partition panels can be stacked either in-line (single point suspension) or off-line at either end of the top track (two point suspension), with different track variations possible to suit your needs.
Sound proof partitions allow you to segregate your space for maximum potential, and are the perfect flexible space-saving solution for areas that require a partition with a higher specification.
The sound proof partitions we supply and install here can allow 2 rooms to become one large area, with a straight forward folding screen.
Where floor area is at a premium, one large meeting room can be sub-divided into 3 smaller rooms for normal use, but when a full team meeting is required, the 2 dividers can be pulled back to give room for everyone.
Easy to operate, with powered operation available if you prefer, the walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Sound proof partitions can be top hung or bottom rolling, to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
A range of sound proof partition panel finishes allows you to be sympathetic to your surroundings, such as Melamines, Veneers, Writable wall panels, Leather or Fabric.
