Premium Manual Operable Folding Partition Sound Insulated Wall For Function Room

Premium Manual Operable Folding Partition Sound Insulated Wall For Function Room

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: BG85 folding partition wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcome
Price: US Dollars 82-100 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 10000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Folding Partition Wall Usage: Interior
Surface: Fabric Color: Yello+grey
Application: Function Room Partition Thickness: 85 Mm
High Light:

Premium Manual Operable Folding Partition

,

Sound Insulated Operable Folding Partition

Product Description

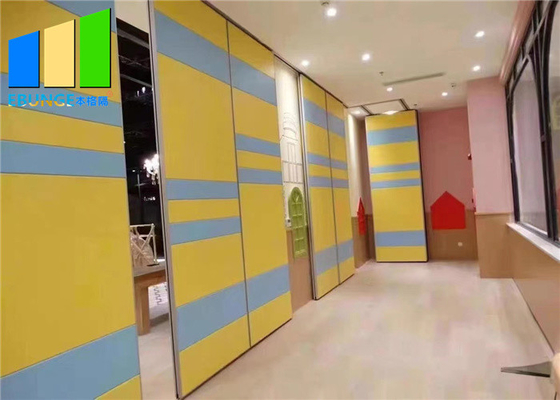

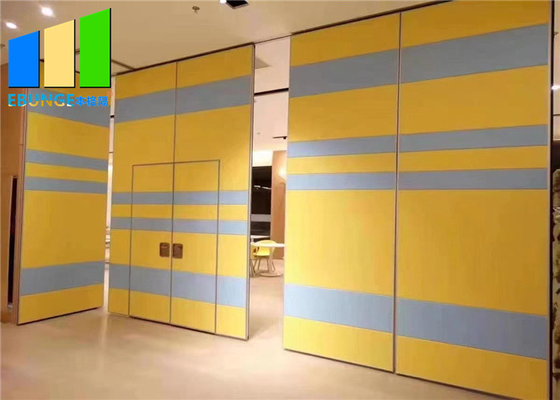

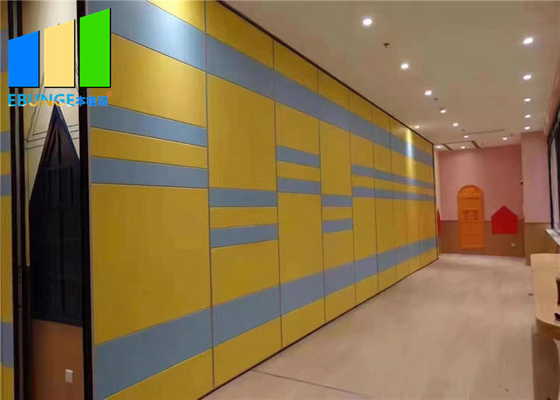

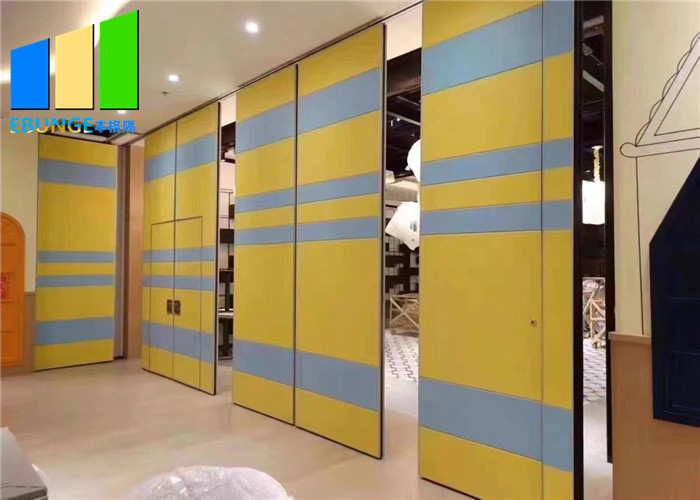

Premium Manual Operable Folding Partition Sound Insulated Wall for Function Room







Folding Partition Wall details



The folding partition wall is a system of individual solid or glazed panels that can moved independently from each other which when fitted together end to end form a continuous flat, faceted or curved wall. Folding partition wall panels are designed to be easily manoeuvred and operated.



They are top hung from either a surface or recessed mounted head track and no floor track is required. Various head track formations are possible to provide different stacking options. Each folding partition wall panel is provided with interlocking seals to each vertical profile, retractable top and bottom seals are either manually or electrically operated. The seals pressure close against the ceiling channel and floor to provide a continuous seal. Individual panels can incorporate single or double door sets and junction panels to form various configurations.



Final closure of the wall can be by a telescopic panel, extending wall jamb or full height door.





Technical Information



TYPE
BG65 BG85 BG100
Panel suspension
Top hung only
Track system
Single or twin point
Panel thickness
65MM
85MM
100MM
Panel height
Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept
Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
Max height
4000mm with heavy duty track
6000mm with heavy duty track
18000mm with heavy duty track or steel track
Panel width
600-1200mm
Frame construction
Aluminium
Aluminium
Aluminium/steel
Face material
9mm/12mm
9mm/12mm
9mm/12mm/15mm
Fire safety
optional Class I or O
Vertical profiles
Aluminium,anodised with sealing profiles,painted-optional
Aluminium,anodised with sealing profiles,painted-optional
Aluminium,anodised with sealing profiles,painted-optional
Retractable seals
Aluminium,black with double rubber seals
Aluminium,black with double rubber seals
Aluminium,black with double rubber seals
Operation of seals
Manual,with supplied operating handle
Locking
Optional lock to pass doors
Pass Doors
Single open in oanel or double open in two panel
Sound insulation
41,43,48dB Rw
43,48,51,53dB Rw
48,51,53,58dB Rw
Weight
Approx 33-40kg/sq M
Approx 43-50kg/sq M
Approx 63-70kg/sq M

Premium Manual Operable Folding Partition Sound Insulated Wall For Function Room 0



Folding Partition Wall Features

1. Space management ~ Folding partition walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centres, or retail areas



2. Smart use of space – Folding partition walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalise on the revenue potential of commercial space or simply create the most efficient use of floor space



3. Acoustics ~ the folding partition sound insulated wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 55dB noise reduction is achieved with a combination of acoustic infill’s and operable top and bottom seals.



4. Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.



5. Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.



6. Panel options ~ Individual panels can be constructed with either manual or semi automatic retractable top and bottom seal. Folding partition wall panels are also available curved or with inset pass doors and glazed cut outs



7. Finishes ~ our folding partition walls systems can be supplied in an almost endless choice, popular finishes include MFC, veneers and laminates but we can also offer dry wipe, wall coverings and fabrics.
