Sound Proof Partitions Wall Sliding Door Aluminum Room Divider For Classroom
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm sound proof partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partitions Wall | Material: | Aluminium And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Function: | Sliding Room Divider |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Warranty: | Sound Proof Partitions Wall Warranty 3-5 Years |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

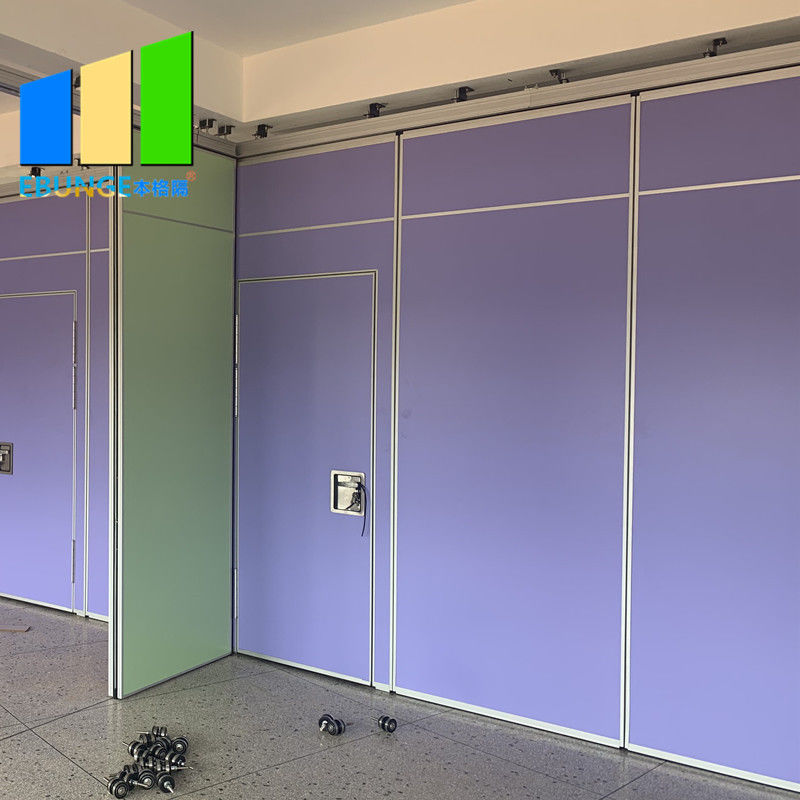

Sound proof partitions wall sliding door aluminum room divider for classroom
Description:
The acoustic room divider is a movable wall that can be easily dismantled and reloaded, and is often found in large spaces such as hotels, exhibition halls, restaurants, and offices.
Soundproof material can also be used as mobile screens, movable partitions, and track partitions. It is a kind of movable wall that can separate large spaces into adjacent small spaces. It can serve as a common wall and increase the function of large spaces. This screen is generally fire-resistant, flexible and easy to install and can be recycled.
There are 65, 85, 100, and 125 types of active screens, as well as models with semi-glass and telescopic models.
These acoustic room divider hanging wheel material is generally the particles, with high strength, wear resistance, acid and alkali resistance, corrosion resistance, to ensure its long life.
The two wheels are equipped with a suspension wheel composed of steel rings. The movement is smooth, smooth and silent. The bearings can be configured to rotate the screen at a certain angle.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Advantage :
Alternatively, top hung with/without floor track.
Face operated salopettes bolts lock wall securely in position.
Continuous contact sweep seals minimize sound transfer.
Single wing or bi-parting configurations.
Leading element is full height pass door.
Optional vision panels.
Parking centrally or to side of line of track.
Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe.
Acoustic performance:
Our Top Hung acoustic operable walls were designed specifically with the office refurbishment sector in mind. With sound attentions available from 37dB RW to 53 dB RW, there is no acoustic issue between rooms that the Top Hung Operable Wall cannot cater for.
Sound reduction dB ratings are often quoted from laboratory test results which are misleading in respect of final performance values. They are merely useful for initial specification purposes. Independent on-site tests as carried out by partners are recommended as in-situ results will differ from laboratory test certification and are therefore the only true guide to achievable sound attenuation.
