Gypsum Board Folding Partition Walls Stage Melamine Office Partition 65mm Thickness
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-101 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Gypsum board folding partition walls stage restaurant melamine office partition restaurant

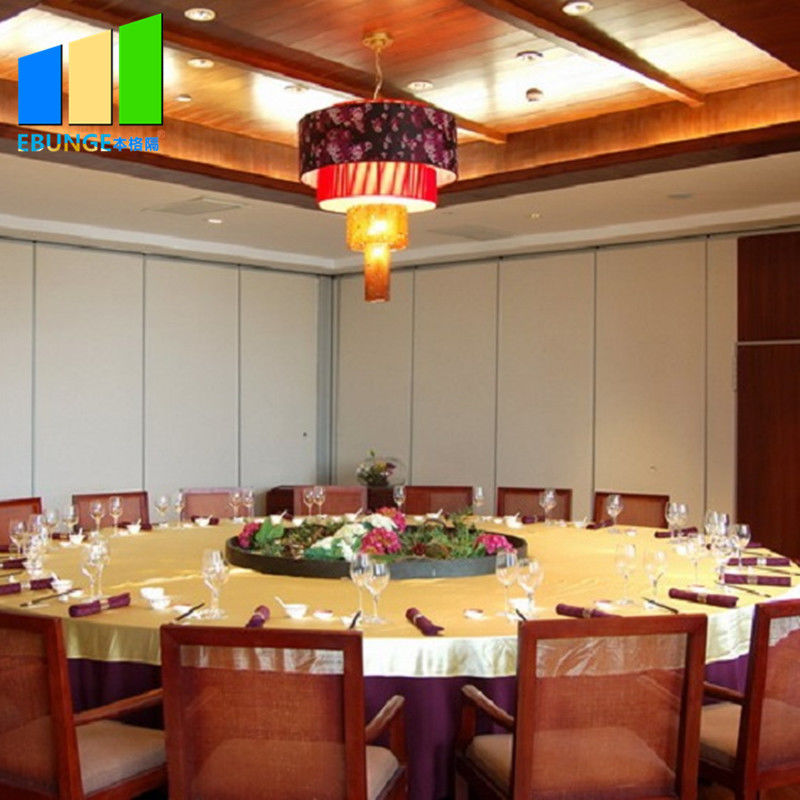

Mobile partition brings great convenience to the work of people, for example, you can fold it at one side, make two spaces into a bigger one.When you need to have a small meeting, you can put the partition panels together, then it becomes many small rooms. Very convenient. The movable partition wall is hanging system without floor track, can also achieve the same fixed effect as the solid wall.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Top hung system without the need for a floor track.
The partition wall panel is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
The operable partition finished panel is hanging on the aluminum track, assembled with muti direction wheels.
We can add single or double doors on the movable partition wall panels for entering convenience.
Installation:
Bunge offer a full installation service complying with the requirements of Fast Track contracts by carrying out a first fix of supports,tacks and baffles and a second fix of the finished panels.
We also complete Turn Key operation,carrying out the installation and all associated works( eg: taking down and reinstating ceilings,providing primary steel supports, etc.).
To avoid disrupting a working environment the installation can be programmed to take place out of normal working hours,causing little or no inconvenience to the client.
Our team of fitters have many years of experience in the partition industry.We therefor offer a completer installation package including structural support, acoustic baffles, ceiling works and associated builder’s works.Our prices include,off loading, haulage and supply of all plant necessary to completer the installation.
