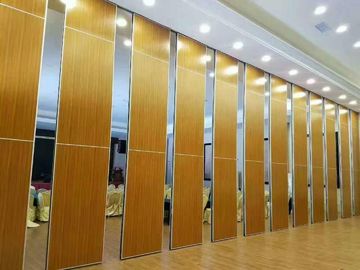

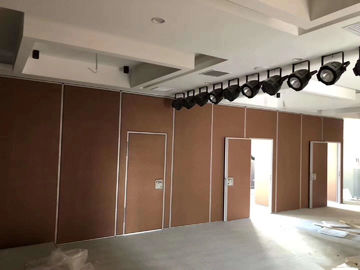

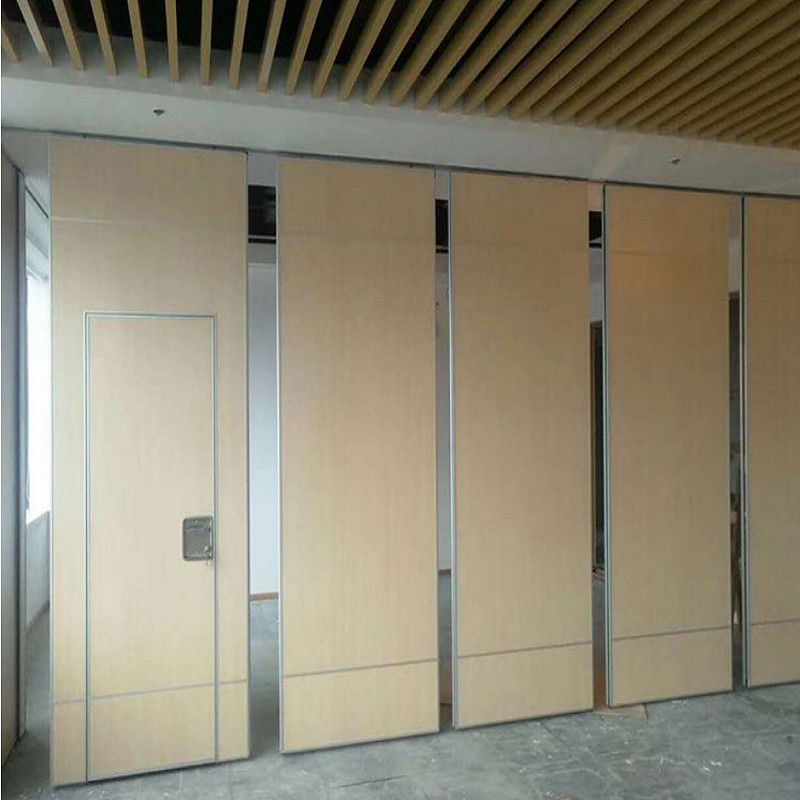

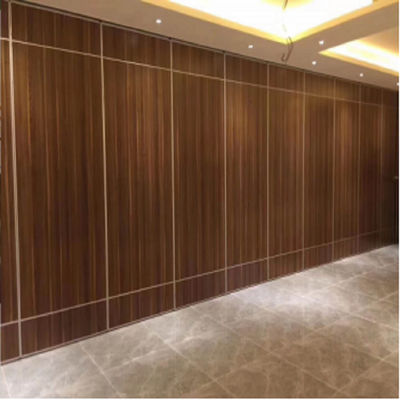

Manual Movable Wall System Sliding Folding Partition With Doors
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sliding folding partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Folding Partition | Application: | Conference Room Partitions |
|---|---|---|---|
| Size: | Partition Walls Customized | Height: | 2000 - 4000 Mm |
| Frame Material: | Aluminum Alloy | System: | Manual System |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Manual Movable Wall System Sliding Folding Partition with Doors Price in Bangalore
Sliding folding partition details
1. Sliding folding partition is exclusively used as the facade of the separation in the interior space, its' application is more flexible, it usually produce the blocking effect, generally don't do it under the board, some of it even can move.The biggest difference between partition and wall is that a partition is made under the plate, that is to say, the height of the facade is different.
2. The operate method of scalability fully embody the people-oriented concept, flexible tactile touch, spring operation became more safe and durable.
3. Track installation: suspension fixed way is at the top of the partition board install the hanging wheel, and connected to the track suspension. The track and hanging wheel should be chosen according to the partition size and load weight.
4. Sliding folding partition panel installation: according to the design drawing, draw on each sliding folding partition panel to mark the line wheel, fix the wheel with screws on the movable partition walls board top; Then the sliding folding partition panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
5. Debugging: sliding folding partition panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work.
Technical Information
| Model | BG-65 series | BG-85 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Sliding folding partition FAQ
| Q: What is the price for sliding folding partition? A: Our sliding folding partition system is customized and the cost is caculated by total square meter.Different types have different prices.So we need you provide to us detailed dimensions like height by width,finish options,parking options to get a quote.We also need your layout drawing if possible. |
| Q: Is the sliding folding partitions acoustic (soundproof)? A: Yes, our sliding folding partition walls system is soundproof.We have different acoustic materials infill to reach different acoustic rating. |
| Q: What finish options you have for partition? A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate,high pressure laminate, wood veneer,fabric,PU and soon.It dependson your requirement. |
| Q: Are you a manufacturer or trading company? A: We are the 100％ real sliding folding partitions manufacturer in Guangzhou, China.We have worked for this business over 10 years. Very welcomed to visit our factory and showroom. |
| Q: How to install the partition? Will it difficult to be done? A: It is not difucult to installe our partitions.Our sliding folding partitions are top supported system without any floor track indeed.So top structure will be very important.We have very detailed drawings and videos showing how to install,so your people just need to follow them step by step. |
| Q: Can you send engineer to install? What will the cost be? A: Sure.We have two options regarding the intallation.The first option is that we will send one engineer as supervisor.He will instruct your workers to do the job but won't do the installation by himself.The second option is that there will be two installers (at least two) to install the folding partition walls. They will install the system by themselves. At the same time, they also need the assistance from local labour. |
| Q: Are your products guranteed? A: Yes,all of our products carry a full 5 Years gurantee,coverig all parts and defects.We can also providean extended warrantee if require and the products are expected to last a lifetime. |
