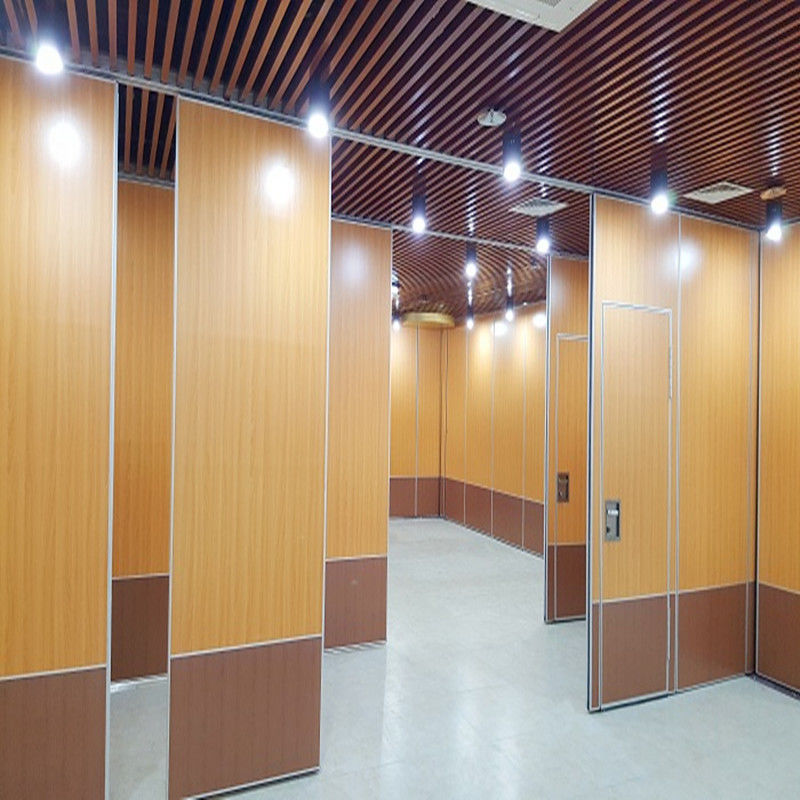

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Model Number: Series 85 mm sound proof partitions

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 100-135 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Finished: MDF With Melamine Height: Less Then 6m
Width: 500-1200 Mm Color: Customized
Thickness: 85mm Material: Aluminium Frame And MDF Board
Function: Space Divide,sound Proof Application: Gallery,theater,office,banquet Hall,hotel Ect
High Light:

movable sound proof partitions

,

movable soundproof partition

Product Description

85MM aluminum frame sound proof partitions melamine surface movable wall

Specification:

Soundproofing partition wall is also called soundproof partition, removable partition, and track partition. The mobile partition has the characteristics of easy installation, reliability, industrial production, fire prevention and environmental protection.

Movable partitions bring great convenience to people's work. For example, the active screen, you can fold it aside when you need it, so that the two spaces are temporarily joined together to make it bigger and convenient for temporary departmental meetings. These products use a ceiling track system that is as strong as a wall.


85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Finish material:

The finish material of soundproof movable partition wall can be customized,customers have lot of choice,like Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.And the color of the finish also can be customised. Following are some samples of finish:

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall 1



Modernized Soundproof Movable partition features
1.Hanging on ceiling The floor without a track, just put the rail mounted on the ceiling
2.Excellent Quality Each pieces of partition can turn around 360 degree.
3.Stable and secure After partition is stable and reliable, and is not easy to swing
4.Energy efficient The large space divided into a small space, in order to reduce air conditioning power consumption;
5.Heatproof&fireproof Good heat insulation performance, Adopt effective fire prevention materials
6.Elegant appearance Surface any adornment, can unite with indoor adornment effect
7.Easy to collect Can be hidden in the special coffer, does not affect the overall appearance
8.Various applications Hotels, exhibition halls, restaurants, multi-functional rooms etc.



Advantage:



1.it is very convenient to be able to expand or reduce it according to different needs.



2.Preservation and storage are appropriate and convenient.



3.The sound insulation is good, not only the sound insulation, but also the heat insulation.



4.The usual mobile partition, its design is relatively fashionable. So, be able to put it anywhere. Can also play a certain beautification role.



5.The stability of the mobile partition is strong. It is not easy to offset the position.

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall 2



Application:
Soundproof movable partition belongs to the products in the partition series,and is widely used in high-end places such as hotels,schools,business clubs,exhibition centers,etc.Therefore,the beauty and quality of the screens of the activities are the first choice for VIP customers, and the planning of the scheme should pay more attention to the overall situation. The overall look is more atmospheric and luxurious. We pay more attention to customer perception, fully consider customer needs,and provide you with a more perfect experience.

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall 3



Company information:

Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.

Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.

85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall 4
