Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 85 mm sound proof partitions

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcome
Price: $82-98 per square meter.
Packaging Details: Paper carton, outside with wooden box.
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sound Proof Partitions Application: Meeting Room Partitions
Service: OEM ODM Trial Sample: Free
Color: Optional Feature: Assemble
High Light:

movable sound proof partitions

,

movable soundproof partition

Product Description

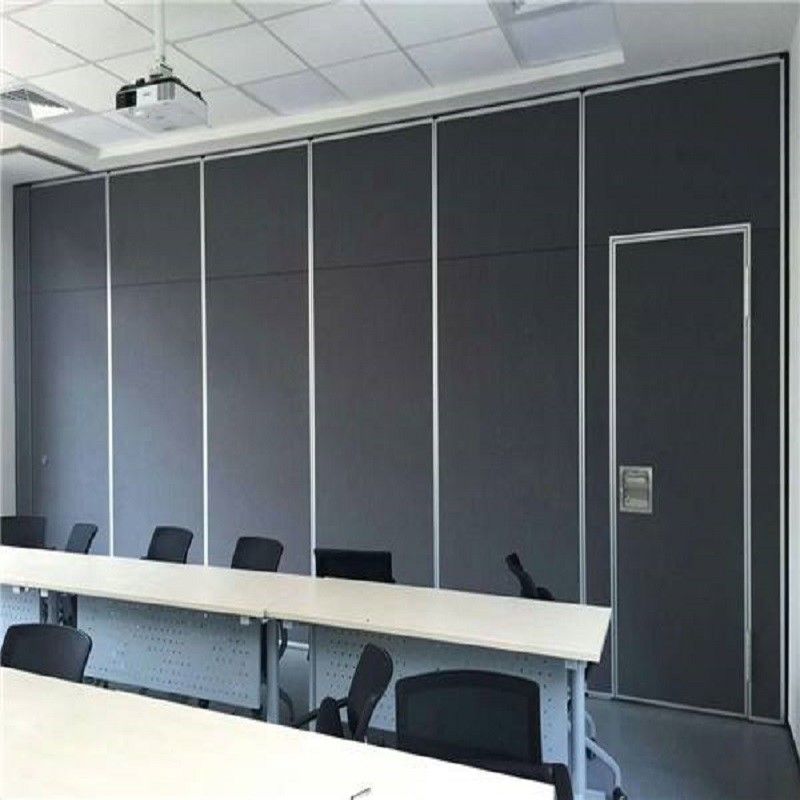

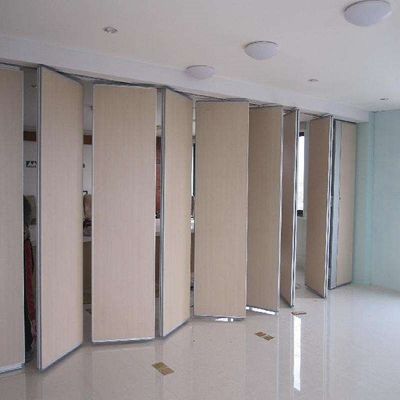

Sliding Folding Partition Doors Movable Sound Proof Partition Wall for Meeting Room



Finished project



Congratulations on the successful completion of the Australian project.



The project is a hotel that uses a unique pattern color for landscape painting, high-efficiency broadband flame-retardant space sound absorber, fire-resistant perforated sound-absorbing panels and high-frequency broadband flame-retardant space sound-absorbing curtains to make the stadium The reverberation echo is reduced. In addition to the wall surface of the sound absorbing material, the sound absorbing body is installed in the ceiling of the gymnasium and suspended in the air. The sound absorbing body can be in contact with the sound waves on all sides, which plays the role of spatial sound absorption. After the banquet hall is seperate by the acoustic partition walls, the grade and utilization of the space are instantly upgraded.



Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 0

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 1

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 2

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 3



Factors of sound insulation



The sound insulation coefficient of the sound proof partition comes from a multi-directional, not only in the partition wall itself, but also in other links, as follows:


1. Horizontal sound insulation


In order to achieve the best sound insulation, the structure of the upper and lower two layers of soundproof rubber is adopted. Tuoba uses the principle of jack to press the double rubber strip on the track and floor of the ceiling to provide high stability sound proof partitions.


2. Corner insulation


The special-shaped rubber-like corner assembly is used to solve the technical problem of treating the sealing of the corner portion; at the same time, the superior stability and sound insulation effect are also achieved.


3. Vertical sound insulation


All sound-insulating walls feature a highly elastic, vertically-bonded side with a concave-and-groove fit to ensure optimum closure and sound insulation.


4. Skeleton


In view of the suspension structure of the sound proof partition wall panel, it can be freely shaken, and the metal hoop members between the wall panels are tightly combined to effectively block the transmission of sound. The panels can be replaced as needed for interior design without damaging the entire wall panel.


5. Sound insulation material


The skeleton is filled with additional soundproofing materials to achieve different sound insulation requirements.


6. Operating the crank


The manual operation of the crank controls the expansion and contraction of the sound insulation strip. The flexible flexibility of the diamond-shaped connecting bayonet in the crank makes the crank less slippery.


7. Panel


The sound proof partition wall panel skeleton is composed of aluminum alloy and steel pipe. This sturdy, non-deformable frame with the tight combination of wall metal hoops provides great stability and high sound insulation.

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 4



Technical information



Panel Suspension: Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.
Track: Aluminum OR Steel Track
Roller on panel: Single or double roller.
Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
Module: 700mm - 1200mm maximum.
Panel stacking: Numerous panel stacking options for complete flexibility.
Panel face: MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes: Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 5



Sound proof partitions features



The sound proof partitions we supply and install here can allow 2 rooms to become one large area, with a straight forward folding screen.



Where floor area is at a premium, one large meeting room can be sub-divided into 3 smaller rooms for normal use, but when a full team meeting is required, the 2 dividers can be pulled back to give room for everyone.



Easy to operate, with powered operation available if you prefer, the walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.



Sound proof partitions can be top hung or bottom rolling, to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.



A range of panel finishes allows you to be sympathetic to your surroundings, from Melamines, to Veneers, to writable wall panels.



We pride ourselves on our professional, efficient services, delivering projects on time and within budget throughout Sheffield. For further information about any of our quality products or services, don’t hesitate to get in touch with our friendly team today.

Sliding Folding Partition Doors Movable Sound Proof Partition Wall For Meeting Room 6
