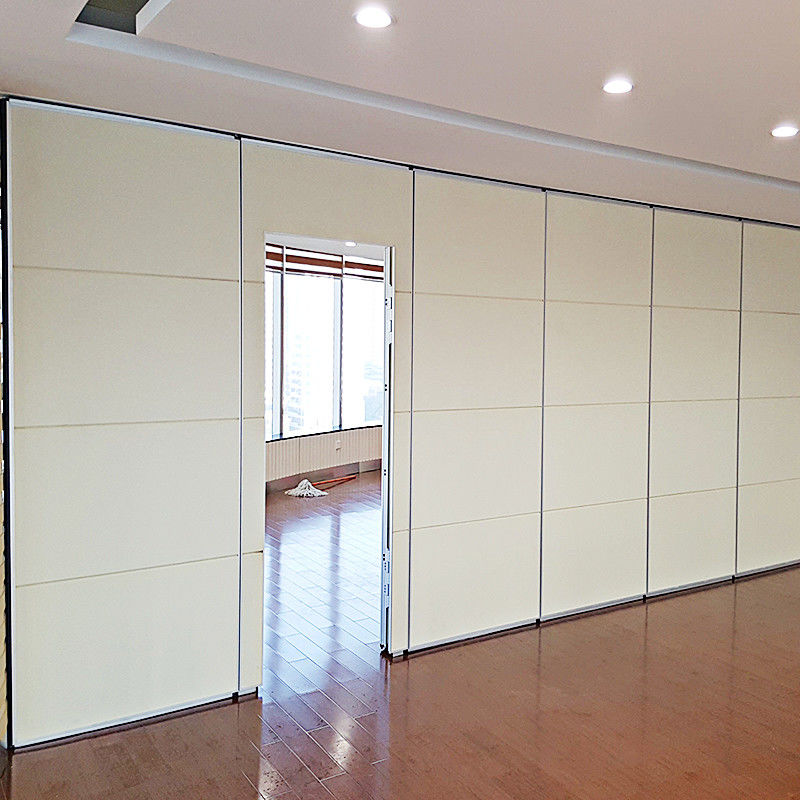

Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom

Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom

Product Details:

Place of Origin: China(mainland)
Brand Name: EBUNGE
Model Number: 100 Series Partitions wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 75-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Get Best Price Contact Now

Detail Information

Finish: Melamine ,fabric,MDF,Leather Produce Name: Hotel Partition Wall
Thickness: 65 Mm Application: Hotel Banquet Hall Ballroom
Style: Soundproof Partition Wall Material Color: Customized
High Light:

acoustic folding partition

,

folding room partitions

Product Description

Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom

Acoustic Movable Sliding Folding Partition Walls For Hotel Banquet Hall Ballroom



Description:





Active shutoff system can be divided into one-way and multi-directional partition. One-way partition, suitable for a simpler space design, each single-piece partition by two horizontal double pulley



suspension, can be in the turn, cross and other split mouth movement, each piece can be easily moved to cut off the partition Point, or move to a remote storage room, to play or create a variety of different combinations of space functions.



Multi-directional partition, suitable for more changes in the space design, it can give the maximum flexibility of the facility. When there is no need for the remote between the plate, the hinge hinge will be combined with two pieces of a combination of two-piece, so that the partition quickly and silently in the linear range of movement, can also be double-cut partition in the track Any one end.





When the partition system is activated, its first piece is cut off and connected to the wall wall door, or the first piece of the partition is equipped with a soundproof seal. The end piece with the telescopic engagement section provides a posture of not less than 110 kg when engaged with the end wall to ensure the best sound insulation between the partition and the wall.



Specification :


1.Hanging on ceiling The floor without a track, just put the rail mounted on the ceiling


2.Excellent Quality Each pieces of partition can turn around 360 degree.


3.Stable and secure After partition is stable and reliable, and is not easy to swing


4.Energy efficient The large space divided into a small space, in order to reduce air conditioning power consumption;


5.Heatproof&fireproof Good heat insulation performance,Adopt effective fire prevention materials


6.Elegant appearance Surface any adornment, can unite with indoor adornment effect


7.Easy to collect Can be hidden in the special coffer, does not affect the overall appearance


8.Various applications Hotels,exhubition halls,restaurants,multi-functional rooms etc.



Installation site of partition wall
1: Installation track
Track is the base, is the priority among priorities of all links, through percussion drilling expansion screws, welding Angle iron and other steel materials fixed up.
2: Insert the door panel
The moving door panels are suspended in the rails without any support on the ground.
3: Installation and debugging
Free and flexible, move the door panels according to whatever you need to change the layout
4: Close against the wall
Convenient collection, save space



Technical Details

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 18000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Passdoors Single door or Double door
Sound insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)



Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom 0



Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom 1



Melamine Finish Folding Partition Walls For Banquet Hall / Ballroom 2
