Decorative Surface Operable Folding Partition Walls ,  Sound Insulation Partition Panel

Decorative Surface Operable Folding Partition Walls , Sound Insulation Partition Panel

Product Details:

Place of Origin: China(mainland)
Brand Name: EBUNGE
Model Number: 65 SERIES Partitions wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 75-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Get Best Price Contact Now

Detail Information

Produce Name: Movable Partitions Wall Surface: Melamine ,fabric,MDF,Leather
Thickness: 65 Mm Application: Office, Church,Auditorium,banquet Hall,hotel
Advantage: Soundproof,Sliding ,movable,folding,acoustic Service: OEM ODM
High Light:

acoustic folding partition

,

folding room partitions

Product Description

Decorative Surface Operable Folding Partition Walls , Sound Insulation Partition Panel

High Quality Operable Fold able Sound Insulation Partition Panel With Decorative Surface For Banquet Hall



Specification of Bunge movable partition:



Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails ,

and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall.

The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC - 32 to 53 in laboratory setting. Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

Retractable room dividers wide of range face finishes are available : melamine faced MDF or Plywood , fabric , carpet , fabric , artificial , leather , wood veneer , high pressure laminate , Formica , acoustic panel , white boad ect. , panels may also be supplied unfinished for field decoration , Standard frame color is clear anodized aluminum , custom powder coating colors are available.


Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation



Specifications



Technical Parameter for Partition Panel Panel Width 500 - 1230mm
Panel height 2000 - 13000mm
Sound proof 42 - 55db
Operation Manual
Frame Aluminum
Vertical profile Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
Finish options Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
Base options Plywood, Gypsum, steel, MDF
Max width Unlimited
Panel weight 30 - 48 kg / sq
Pass door selection door Single or double door
Seals Top Manual
bottom Manual



The Accessories Of Movable And Operable Partition System



Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .


Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .





Movable And Operable Partition System Application :


It's widely used at huge stadium, cinema, meeting room , office room, music hall , theather and work shops etc . any places where need sound absorption can use this products .





Operation :



Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.





Track :



The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .





Trolley :



BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .

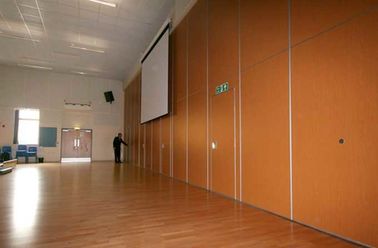

Decorative Surface Operable Folding Partition Walls ,  Sound Insulation Partition Panel 0

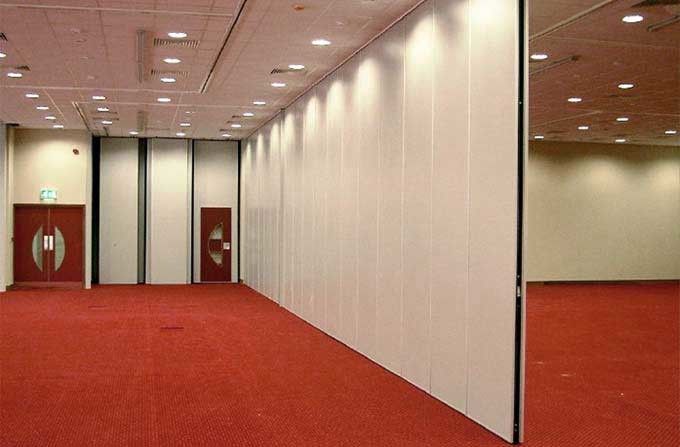

Decorative Surface Operable Folding Partition Walls ,  Sound Insulation Partition Panel 1

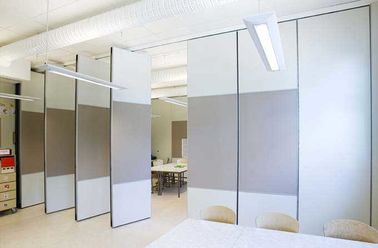

Decorative Surface Operable Folding Partition Walls ,  Sound Insulation Partition Panel 2
