Custom Made Workstation Sliding Folding Partition Walls Panel 85mm Thickness

Custom Made Workstation Sliding Folding Partition Walls Panel 85mm Thickness

Product Details:

Place of Origin: China(mainland)
Brand Name: EBUNGE
Model Number: 85 SERIES Partitions wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 75-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Get Best Price Contact Now

Detail Information

Produce Name: Movable Partitions Wall Finish: Melamine ,fabric,MDF
Thickness: 85 Mm Application: Exhibition Hall, Church ,Auditorium
Advantage: Soundproof,Sliding ,movable Style: Soundproof Building Material
High Light:

soundproof folding partition

,

folding room partitions

Product Description

Custom Made Workstation Sliding Folding Partition Walls Panel 85mm Thickness

Custom made Workstation Customized Sliding Folding Acoustic Partition Wall For Office

>>Features & Benefits

>>Panel suspension: Movable, top hung system without the need for a floor track

>>Panel width: Each panel 600mm to 1200mm

>>Roller on panel: Single roller or double roller

>>Soundproof rate: 32Db, 38dB,43dB,48dB,53dB Rw

>>Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height

>>Track: Aluminum track or steel track

>>Top & bottom seals: Top and bottom pressure retractable seals ensure effortless moved and locked.

>>Panel stacking: Numerous panel stacking options for complete flexibility

>>Panel surface: MDF, Plywood, Wall paper, Fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc.


Specifications (85mm)



Panel Width
500 - 1230mm
Panel height 2000 - 6000mm
Frame Aluminum
Operation Manual
Sound proof 36 - 42db
Vertical profile Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
Finish options Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
Base options Plywood, Gypsum, steel, MDF
Max width Unlimited

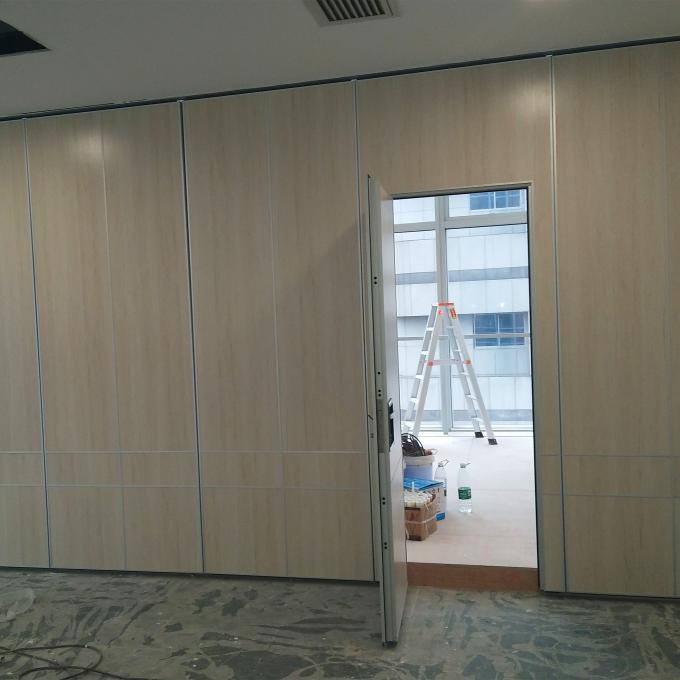

Pass door selection Single or double door


Custom Made Workstation Sliding Folding Partition Walls Panel 85mm Thickness 0

Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans.When closed, the operable wall shall provide a complete sound retardant barrier.No floor track shall be used.


Track :

The tracks are made from extruded 6063 - T6 anodized aluminium .The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets .Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .


Trolley :

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .


Aluminum trim :

The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 - T6 Anodized Aluminum shall be used .


Panels :

The Panels will be made from 9mm MDF boards and shall be 85mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction .The panel faces shall be finished with selected material .
· Basic Panels shall be equal in module.
· Approx.Weight kg/ square meter : 28 kg
· Maximum height : 6000mm.


Panel Surface Finish :

The panel surface will be as per the clients requirement finished either in BUNGE factory - China or by others.The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)


Retractable mechanism :

The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode .Single crank type mechanisms shall activate floor and head seals .


Seals :

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.


Acoustic insulation Material :

Rockwool sound absorption glass fiber shall be used.


Magnetic Strip :

Ferrite plastic magnetic material will be used in between aluminium profiles to enhance acoustic performance of the wall.


Stacking :

The panels will be stacked as per the agreed method and in accordance with the architetural plan.Centre stacking arrangement will be utilized for the subject project.


Applications :

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .



Custom Made Workstation Sliding Folding Partition Walls Panel 85mm Thickness 1
