Aluminum Frame Foldable Partition Wall Single Or Two Point Track System
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | BUNGE |
| Model Number: | 65 mm folding partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| General Use: | Commercial Furniture | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Thickness: | 65 Mm |
| Application: | Restaurant,etc. | Height: | Max 4 Meters |
| Feature: | Space Saving,soundproof | Finishing Option: | Melamine |
| Service: | OEM/ODM | ||
| Highlight: | acoustic folding partition,folding room partitions |
||
Product Description

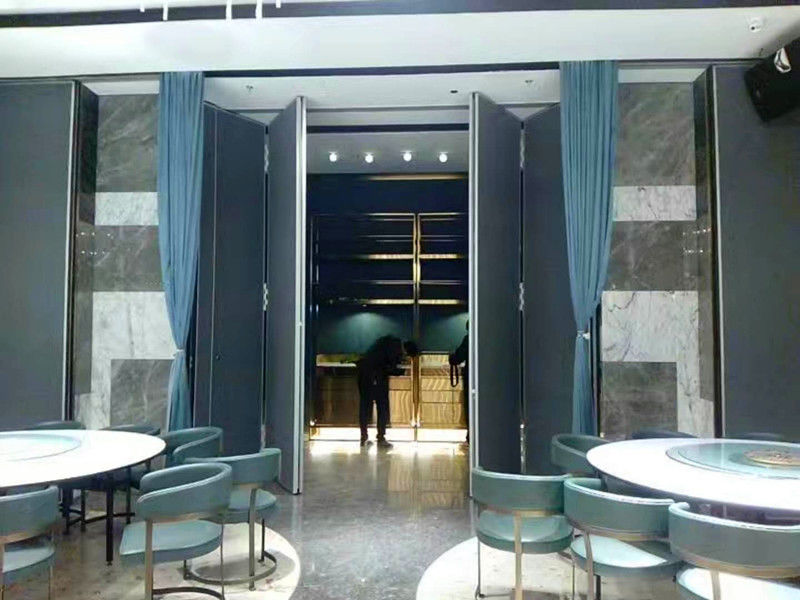

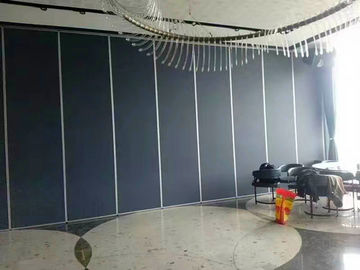

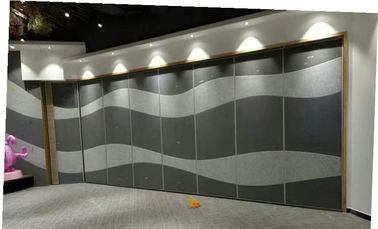

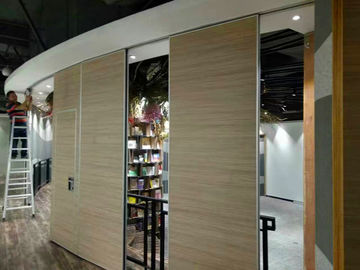

Top hanging 65 mm melamine surface sliding folding partition wall for restaurant
Product Description:
Bunge folding partition walls are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Features:
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available
Our Service
Inquiries will be replied within 1 day.
Our professional CAD Engineer can offer the floor drawing under your requirements.
3D Images of displayed environment are available if necessary.
Local installation is available when the buyer pay for our workers’ costs.
MOQ:
NO MOQ
Trade Term:
EXW, FOB & CIF. FOB Port: Guangzhou
Payment Term:
TT 30% deposit before production, balance before shipment.
Leadtime:
7-15 days after receiving payment
Warranty:
3 years warranty is valid under proper usage. We will offer free sample but not including the freight.
